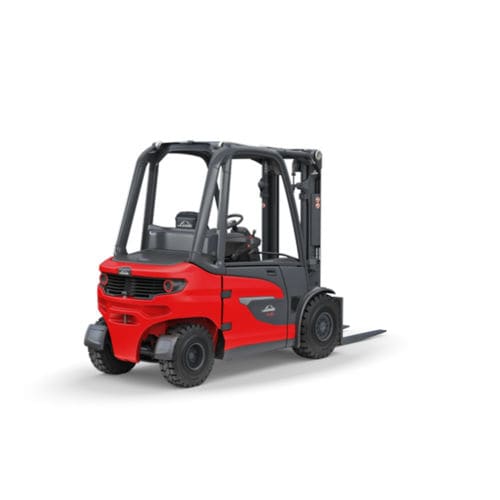

Electric forklift truck X20 – X35ride-onhandling4-wheel
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling
- Other characteristics
- 4-wheel, counterbalanced, high-performance, low-noise
- Carrying capacity
2,000 kg, 2,500 kg, 3,000 kg, 3,500 kg
(4,409.2 lb, 5,511.6 lb, 6,613.9 lb, 7,716.2 lb)- Lifting height
3,095 mm
(121.85 in)- Overall width
1,256 mm, 1,356 mm
(49.4 in, 53.4 in)- Overall length
3,671 mm, 3,704 mm, 3,709 mm
(144.5 in, 145.8 in, 146 in)- Load center distance
500 mm, 600 mm
(19.7 in, 23.6 in)- Weight without load
4,837 kg, 5,121 kg, 5,536 kg
(10,663.8 lb, 11,289.9 lb, 12,204.8 lb)- Axle loading with maximum load front
5,663 kg, 6,315 kg, 7,104 kg, 7,953 kg
(12,484.8 lb, 13,922.2 lb, 15,661.6 lb, 17,533.4 lb)- Axle loading with maximum load rear
1,017 kg, 1,022 kg, 1,083 kg, 1,174 kg
(2,242.1 lb, 2,253.1 lb, 2,387.6 lb, 2,588.2 lb)- Axle loading without load front
2,513 kg, 2,586 kg, 2,673 kg
(5,540.2 lb, 5,701.2 lb, 5,893 lb)- Axle loading without load rear
2,324 kg, 2,535 kg, 2,863 kg
(5,123.5 lb, 5,588.7 lb, 6,311.8 lb)- Track width front
1,008 mm, 1,060 mm
(39.7 in, 41.7 in)- Track width rear
930 mm, 946 mm
(36.6 in, 37.2 in)- Height of mast when lowered
2,218 mm, 2,220 mm, 2,224 mm
(87.3 in, 87.4 in, 87.6 in)- Free lift
150 mm
(5.9 in)- Overall height with mast raised
3,850 mm, 3,852 mm, 3,856 mm
(151.6 in, 151.7 in, 151.8 in)- Height to top of overhead guard
2,225 mm
(87.6 in)- Seat height
1,156 mm, 1,162 mm
(45.5 in, 45.7 in)- Tow couplig height
587 mm, 598 mm, 600 mm
(23.1 in, 23.5 in, 23.6 in)- Length to fork face
2,671 mm, 2,704 mm, 2,709 mm
(105.2 in, 106.5 in, 106.7 in)- Fork carriage width
1,150 mm
(45.3 in)- Ground clearance under mast with load
117 mm, 119 mm, 124 mm
(4.6 in, 4.7 in, 4.9 in)- Ground clearance at center of wheelbase with load
173 mm, 178 mm, 180 mm
(6.8 in, 7 in, 7.1 in)- Turning circle radius
2,352 mm, 2,394 mm
(92.6 in, 94.3 in)- Travel speed
22 km/h
(13.7 mph)- Lifting speed
Min.: 0.5 m/s
(1.64 ft/s)Max.: 0.6 m/s
(1.969 ft/s)- Lowering speed
0.6 m/s
(1.969 ft/s)- Rated drawbar pull
7,600 N, 20,000 N
- Rated output
12.4 kW
(16.9 hp)- Maximum operating pressure
180 bar, 200 bar, 225 bar, 245 bar
(2,610.7 psi, 2,900.8 psi, 3,263.3 psi, 3,553.4 psi)- Oil flow
50 l/min
(13.2 us gal/min)- Noise level
65 dB
Description
The first truly emission-free alternative
The X20 – X35 counterbalance forklift trucks from Linde Material Handling are the first electric forklifts whose high performance and robustness means they can be used as a genuine alternative to internal combustion (IC) trucks. Customers therefore enjoy absolute freedom of choice and are able to choose a quiet, emission-free alternative for even the most challenging applications, without having to allow for any loss of performance. The basis for all of this is the common platform developed by Linde for counterbalance forklift trucks, whether powered by internal combustion engines or electricity. This means that the X20 – X35 forklifts combine the best of two worlds: the characteristic output and power development of IC trucks and the dynamics, flexibility, and freedom from emissions offered by electric trucks.
Characteristics
Safety
The comprehensive safety concept of the X20 – X35 electric forklift trucks protects not only the driver but also pedestrians and the goods being transported. The slimline mast design, narrow A-pillar, and lowered front plate afford the driver an unimpeded view of the load and surrounding area. Even when loading and unloading at higher levels, the roof design continues to give the driver a perfect view of the load. The truck’s low center of gravity and high steering axle ensure a high degree of protection from the risk of overturning. In addition, Linde Curve Assist, fitted as standard, reduces truck speed on bends and prevents it from tipping over.
