Electric forklift Xi14 – Xi20 R
ride-onoutdoorfor warehouse

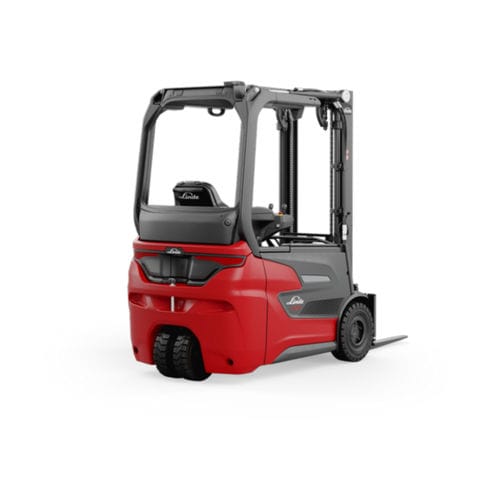

Electric forklift - Xi14 – Xi20 R - Linde Material Handling - ride-on / outdoor / for warehouse
Electric forklift - Xi14 – Xi20 R - Linde Material Handling - ride-on / outdoor / for warehouse
Electric forklift - Xi14 – Xi20 R - Linde Material Handling - ride-on / outdoor / for warehouse - image - 2
Electric forklift - Xi14 – Xi20 R - Linde Material Handling - ride-on / outdoor / for warehouse - image - 3
Electric forklift - Xi14 – Xi20 R - Linde Material Handling - ride-on / outdoor / for warehouse - image - 4
Electric forklift - Xi14 – Xi20 R - Linde Material Handling - ride-on / outdoor / for warehouse - image - 5
Electric forklift - Xi14 – Xi20 R - Linde Material Handling - ride-on / outdoor / for warehouse - image - 6
Electric forklift - Xi14 – Xi20 R - Linde Material Handling - ride-on / outdoor / for warehouse - image - 7
Electric forklift - Xi14 – Xi20 R - Linde Material Handling - ride-on / outdoor / for warehouse - image - 8
Electric forklift - Xi14 – Xi20 R - Linde Material Handling - ride-on / outdoor / for warehouse - image - 9
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
loading, transport, unloading, storage, industrial, for warehouse, outdoor
Other characteristics
4-wheel, counterbalanced, compact, high-performance, 3-wheel, custom, with super-elastic tires, rugged
Carrying capacity

1.4 t, 1.6 t, 1.8 t, 2 t
(1.5 us ton, 1.8 us ton, 2 us ton, 2.2 us ton)

Lifting height

3,050 mm
(120.08 in)

Overall width

1,086 mm, 1,173 mm
(42.8 in, 46.2 in)

Overall length

2,782 mm, 2,822 mm, 2,875 mm, 2,919 mm
(109.5 in, 111.1 in, 113.2 in, 114.9 in)

Load center distance

500 mm
(19.7 in)

Weight without load

2,870 kg, 3,062 kg, 3,339 kg, 3,404 kg
(6,327.3 lb, 6,750.6 lb, 7,361.2 lb, 7,504.5 lb)

Axle loading with maximum load front

3,607 kg, 3,953 kg, 4,350 kg, 4,689 kg
(7,952.1 lb, 8,714.9 lb, 9,590.1 lb, 10,337.5 lb)

Axle loading with maximum load rear

663 kg, 709 kg, 715 kg, 789 kg
(1,461.7 lb, 1,563.1 lb, 1,576.3 lb, 1,739.4 lb)

Axle loading without load front

1,292 kg, 1,338 kg, 1,440 kg, 1,484 kg
(2,848.4 lb, 2,949.8 lb, 3,174.7 lb, 3,271.7 lb)

Axle loading without load rear

1,578 kg, 1,724 kg, 1,899 kg, 1,920 kg
(3,478.9 lb, 3,800.8 lb, 4,186.6 lb, 4,232.9 lb)

Track width front

930 mm, 966 mm
(36.6 in, 38 in)

Track width rear

172 mm, 176 mm
(6.8 in, 6.9 in)

Height of mast when lowered

2,144 mm, 2,145 mm
(84.4 in, 84.4 in)

Free lift

150 mm
(5.9 in)

Overall height with mast raised

3,655 mm, 3,656 mm
(143.9 in, 143.9 in)

Height to top of overhead guard

2,078 mm, 2,079 mm, 2,080 mm
(81.8 in, 81.9 in, 81.9 in)

Seat height

1,021 mm, 1,022 mm
(40.2 in, 40.2 in)

Tow couplig height

530 mm, 531 mm
(20.9 in, 20.9 in)

Length to fork face

1,882 mm, 1,922 mm, 1,975 mm, 2,019 mm
(74.1 in, 75.7 in, 77.8 in, 79.5 in)

Fork carriage width

980 mm
(38.6 in)

Ground clearance under mast with load

91 mm, 93 mm, 95 mm
(3.6 in, 3.7 in, 3.7 in)

Ground clearance at center of wheelbase with load

96 mm, 97 mm, 99 mm, 100 mm
(3.8 in, 3.8 in, 3.9 in, 3.9 in)

Turning circle radius

1,512 mm, 1,552 mm, 1,600 mm, 1,640 mm
(59.5 in, 61.1 in, 63 in, 64.6 in)

Travel speed

20 km/h
(12.4 mph)

Lifting speed

Max.: 0.75 m/s
(2.461 ft/s)

Min.: 0.57 m/s
(1.87 ft/s)

Lowering speed

0.5 m/s, 0.85 m/s
(1.64 ft/s, 2.789 ft/s)

Rated output

6.5 kW
(8.8 hp)

Maximum operating pressure

170 bar
(2,465.6 psi)

Oil flow

32 l/min
(8.5 us gal/min)

Noise level

66 dB

Description

Linde Roadster: Maximum Visibility and Safety The Xi14 – Xi20 R counterbalanced forklift trucks (three-wheel version) are based on the proven Xi series from Linde Material Handling and combine its outstanding performance, safety, and ergonomics with optimized all-round visibility. The “R” in the model name stands for “Roadster” and underlines the truck’s optimized view to the front. This is made possible by the overhead tilt cylinders, which have always been a key feature of Linde’s counterbalanced forklift trucks. The cab roof is connected to the side of the tilt cylinders, which removes the need for the A-pillar. This gives the driver a clear view of their route, load, and surroundings at all times, increasing safety and boosting handling performance at the same time, particularly when performing demanding tasks such as loading and unloading trucks and transporting goods, and when there is a high volume of pedestrian and forklift traffic. Just like the other trucks in the Xi series, the Roadster sets new performance standards in the 1 to 2 metric ton load range. The innovative drive technology enables above-average lifting and lowering speeds even under maximum load, and ensures efficient energy consumption at the same time. What’s more, the compact 3-wheel chassis with swivel-steering axle guarantees maximum maneuverability in confined spaces. The Roadster’s intelligent design underlines its focus on ergonomics and driver comfort.
