Electric forklift Xi10 – Xi20
ride-onindustrialhandling

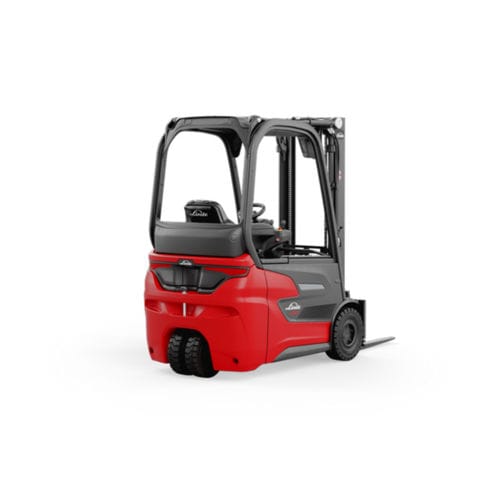

Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling
Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling
Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling - image - 2
Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling - image - 3
Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling - image - 4
Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling - image - 5
Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling - image - 6
Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling - image - 7
Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling - image - 8
Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling - image - 9
Electric forklift - Xi10 – Xi20 - Linde Material Handling - ride-on / industrial / handling - image - 10
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, industrial
Other characteristics
counterbalanced, compact, high-performance, 3-wheel, with super-elastic tires
Carrying capacity

1.2 t, 1.4 t, 1.6 t, 1.8 t, 2 t
(1.3 us ton, 1.5 us ton, 1.8 us ton, 2 us ton, 2.2 us ton)

Lifting height

2,850 mm, 3,050 mm
(112.2 in, 120.08 in)

Overall width

1,086 mm, 1,162 mm
(42.8 in, 45.7 in)

Overall length

Min.: 2,620 mm
(103.1 in)

Max.: 2,919 mm
(114.9 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Min.: 2,468 kg
(5,441 lb)

Max.: 3,370 kg
(7,429.6 lb)

Axle loading with maximum load front

Min.: 3,280 kg
(7,231.2 lb)

Max.: 4,675 kg
(10,306.6 lb)

Axle loading with maximum load rear

Min.: 388 kg
(855.4 lb)

Max.: 695 kg
(1,532.2 lb)

Axle loading without load front

Min.: 1,177 kg
(2,594.8 lb)

Max.: 1,470 kg
(3,240.8 lb)

Axle loading without load rear

Min.: 1,291 kg
(2,846.2 lb)

Max.: 1,900 kg
(4,188.8 lb)

Track width front

930 mm, 966 mm
(36.6 in, 38 in)

Track width rear

172 mm, 176 mm
(6.8 in, 6.9 in)

Height of mast when lowered

2,144 mm, 2,145 mm, 2,146 mm
(84.4 in, 84.4 in, 84.5 in)

Free lift

150 mm
(5.9 in)

Overall height with mast raised

3,655 mm, 3,656 mm, 3,657 mm
(143.9 in, 143.9 in, 144 in)

Height to top of overhead guard

Min.: 2,053 mm
(80.8 in)

Max.: 2,057 mm
(81 in)

Seat height

1,021 mm, 1,022 mm
(40.2 in, 40.2 in)

Tow couplig height

530 mm, 531 mm, 535 mm
(20.9 in, 20.9 in, 21.1 in)

Length to fork face

Min.: 1,720 mm
(67.7 in)

Max.: 2,019 mm
(79.5 in)

Fork carriage width

980 mm
(38.6 in)

Ground clearance under mast with load

91 mm, 93 mm, 94 mm, 95 mm
(3.6 in, 3.7 in, 3.7 in, 3.7 in)

Ground clearance at center of wheelbase with load

Min.: 96 mm
(3.8 in)

Max.: 101 mm
(4 in)

Turning circle radius

Min.: 1,350 mm
(53.1 in)

Max.: 1,640 mm
(64.6 in)

Travel speed

20 km/h
(12.4 mph)

Lifting speed

Min.: 0.57 m/s
(1.87 ft/s)

Max.: 0.75 m/s
(2.461 ft/s)

Lowering speed

0.5 m/s, 0.58 m/s
(1.64 ft/s, 1.903 ft/s)

Rated output

6.5 kW
(8.8 hp)

Maximum operating pressure

170 bar, 185 bar
(2,465.6 psi, 2,683.2 psi)

Oil flow

32 l/min
(8.5 us gal/min)

Noise level

66 dB

Description

Powerful and compact for the most demanding applications The Xi10 – Xi20 battery counterbalance forklift trucks define a new performance level in the 1 to 2 tonne payload range and have been shown to be the most powerful forklift trucks in their class. The innovative drive technology ensures consistently high performance even for demanding applications and enables above-average lifting and lowering speeds. This makes the Xi10 – Xi20 the ideal solution for intensive operations with frequent lifting and lowering. The compact chassis with swivel steering axle (three-wheeled version) guarantees maximum maneuverability even in the tightest of spaces. The permanently integrated Li-ION battery and the absence of a battery tray give the driver significantly more legroom. This also made it possible to increase the size of the entry step and place it lower, which offers additional comfort and greater safety when getting in and out of the truck. The three-wheeled version of the Xi10 – Xi20 offers six variants with different chassis sizes and battery capacities, as well as a wide range of equipment options. This allows the user to find the ideal, most economical configuration for each task. Maximum performance, efficient energy consumption and a wide range of versions make the Xi10 – Xi20 a cost-effective investment.
