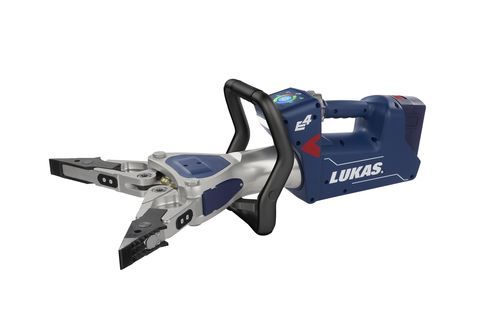

Battery-operated hydraulic spreader SP333 E4

portable

Overview
Lightweight, fast and purpose-built for confined-space extrication, the SP333 E4 hydraulic spreader delivers controlled spreading and precise operation for first‑arrival rescue teams. Compact dimensions and integrated feedback systems support rapid, safe interventions.

Key features

• LUKAS Shark‑Tooth Tips for improved grip and stability
• LUKAS Intuitive Dashboard with multi‑sensory alerts and remaining‑stroke indicator
• 360° ergonomic handle for secure handling in any orientation
• Integrated light bar providing focused illumination at the point of action
• IP68‑rated rescue battery: fully sealed for water, mud, fuel and debris
• Integrated on‑tool charging (direct‑to‑tool charging) to avoid battery swaps

LUKAS Shark Tooth Tips
Specialised multi‑angle tooth geometry bites into modern vehicle materials to prevent slippage under load. This design supports controlled spreading and improves safety for both rescuer and casualty.

Intuitive dashboard
Provides clear, real‑time feedback on tool position and system status, including a remaining‑stroke indicator. Information is presented for immediate clarity in low‑visibility or high‑stress situations.

Ergonomic handle
A two‑component injection‑moulded handle combines strength and comfort, enabling precise control from any working position and reducing operator fatigue during prolonged operations.

Integrated light bar
Delivers consistent, powerful illumination directly where the tool contacts the structure, improving visibility of contact points, deformations and hazards to speed up safe intervention.

IP68 rescue battery
Fully sealed and built for extreme rescue conditions, the battery maintains reliable power through water, mud, fuel and debris so the tool remains operational in adverse environments.

Integrated on‑tool charging
Direct charging to the tool eliminates the need for frequent battery swaps and ensures the equipment is mission‑ready when required.

Technical specifications

• Dimensions: 857 x 241 x 311 mm
• Weight: 17.3 kg
• Squeezing force up to: 144 kN
• Protection class: IP 58
• Blade opening: 600 mm
• Spreading force: 836 kN
• Pulling force up to: 56 kN
• Pulling distance: 440 mm
