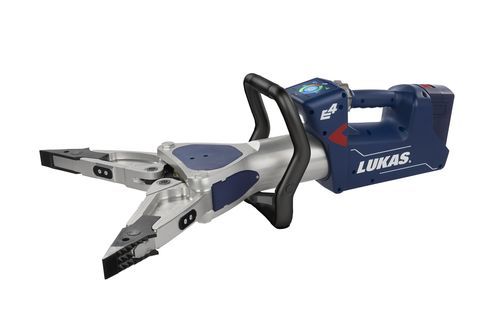

Battery-operated hydraulic spreader SP555 E4 CONNECT

high resistance

Description
The SP555 E4 CONNECT hydraulic rescue spreader delivers high spreading power with extended reach for demanding extrication tasks. Intelligent diagnostics and enhanced ergonomics support safe, controlled performance in rescue operations.

Features

• LUKAS Shark‑Tooth Tips for improved grip and stability
• LUKAS intuitive dashboard with multi‑sensory alerts and remaining‑stroke indicator
• Captium™ live data diagnostics to reduce downtime
• Smart asset tracking with LUKAS geofencing
• 360° ergonomic handle and integrated light bar

Product features

• LUKAS Shark‑Tooth Tips — Multi‑angle tooth geometry bites into modern vehicle materials for superior grip and prevents slippage under load, enabling precise spreading and improved safety for rescuers and casualties.
• Intuitive dashboard — Provides real‑time feedback on tool position and system status, including a clear remaining‑stroke indicator for confident operation in all conditions.
• Ergonomic handle — Two‑component injection‑moulded design combines strength and comfort for precise control from any working position and reduces operator fatigue.
• Integrated light bar — Delivers consistent, high‑intensity illumination at the point of action to improve visibility of contact points, structures and hazards.
• IP68‑rated rescue battery — Fully sealed battery built for extreme rescue conditions, providing reliable power in water, mud, fuel and debris.
• Captium™ connectivity with geofencing — Real‑time insight into tool performance and condition, plus integrated geofencing to secure assets and support fleet readiness.
• Integrated on‑tool charging — Direct charging on the tool eliminates battery swaps and keeps equipment ready for immediate use.

Technical specifications

• Dimensions: 956 x 256 x 311 mm
• Weight: 20.2 kg
• Squeezing force up to: 115 kN
• Protection class: IP 58
• Blade opening: 730 mm
• Spreading force: 658 kN
• Pulling force up to: 58 kN
• Pulling distance: 569 mm
