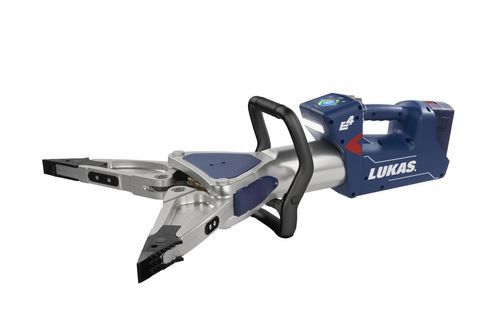

Battery-operated hydraulic spreader SP777 E4

portable

Product overview
The SP777 E4 hydraulic spreader delivers extreme spreading and squeezing power with long reach for heavy-duty rescue operations. It combines controlled force, ergonomic handling and field‑ready protection for use in demanding extrication scenarios.

Key features

• LUKAS Shark‑Tooth tips for enhanced grip and stability
• LUKAS intuitive dashboard with multisensory alerts and remaining‑stroke indicator
• 360° ergonomic handle for safe manipulation in confined spaces

LUKAS Shark‑Tooth tips
Engineered tooth geometry bites into modern vehicle materials to prevent slippage under load, providing secure contact and controlled spreading to protect both rescuers and casualties.

Intuitive dashboard
Provides real‑time feedback on tool position and performance, including clear stroke indication and system status, enabling rapid, confident decisions during operations.

Ergonomic handle
A two‑component injection‑moulded handle balances strength and comfort for precise control from any working position and reduced operator fatigue.

Integrated light bar
Delivers consistent, powerful illumination at the point of action to improve visibility of contact points, structures and hazards for faster, safer interventions.

IP68‑rated rescue battery
Fully sealed for operation in water, mud, fuel and debris, the battery ensures reliable power delivery in extreme rescue conditions.

Integrated on‑tool charging
Direct-to-tool charging eliminates battery swaps and helps maintain mission readiness by keeping the tool powered without downtime.

Technical data
Item number: 94-10-31
Dimensions: 1030 x 309 x 311 mm
Weight: 23.6 kg
Blade opening: 813 mm
Squeezing force (up to): 122 kN
Spreading force: 600 kN
Pulling force (up to): 63 kN
Pulling distance: 655 mm
Protection class: IP 58

Specifications

• Model: SP777 E4
• Tips: LUKAS Shark‑Tooth
• Dashboard: diagnostic display and remaining‑stroke indicator
• Handle: 360° ergonomic, two‑component
• Battery: rechargeable rescue battery, IP68, underwater use and charging capability
