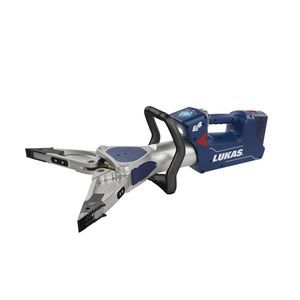

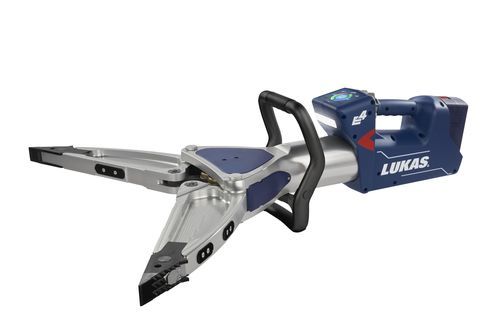

Battery-operated hydraulic spreader SP778 E4 CONNECT

portable

Overview
The SP778 E4 CONNECT rescue spreader delivers the widest spreading distance in the product line, engineered for large-scale extrication and structural displacement operations.

Key features

• LUKAS Shark-Tooth Tips for superior grip and stability
• LUKAS intuitive dashboard with multi-sensory alerts and remaining-stroke indicator
• Captium™ live diagnostics and asset tracking with geofencing
• Integrated high-intensity light bar and 360° ergonomic handle
• IP68-rated rescue battery and on-tool charging

LUKAS Shark Tooth Tips
Precision tooth geometry bites into modern vehicle materials to resist slippage under load. Multi-angle design ensures controlled spreading and improved safety for operators and casualties.

Intuitive dashboard
Provides real-time feedback on tool position and performance, including a clear remaining-stroke indicator and system status to support fast, confident decisions in hostile conditions.

Ergonomic handle
A two-component injection-moulded 360° handle combines strength and comfort for precise control in any working posture, reducing operator fatigue during prolonged missions or work in confined spaces.

Integrated light bar
Delivers consistent, powerful illumination at the point of action to improve visibility of contact points, structures and hazards for safer and faster operations.

IP68-rated rescue battery
Fully sealed battery designed for extreme rescue environments (water, mud, fuel, debris). Ensures reliable power delivery and permits underwater battery change where specified by the product range.

Captium™ connectivity with geofencing
Real-time diagnostics and performance telemetry help reduce downtime and maintain asset readiness. Geofencing protects and tracks deployed tools.

Integrated on-tool charging
Direct-to-tool charging removes the need for frequent battery swaps and keeps equipment mission-ready with minimal handling.

Benefits

• POWER UNDER e³ CONTROL: intelligent dashboard with performance diagnostics
• Optimized blade geometry with maximum opening for large access
• Smart turbo function for faster work cycles
• Wide blade opening up to the centre bolt
• Extended operating time via 9 Ah rechargeable battery
• Capable of operating up to 60 minutes in fresh or salt water at 3 m depth
• Underwater battery change possible per range specifications

Technical specifications

• Dimensions: 1140 x 309 x 311 mm
• Weight: 25.1 kg
• Squeezing force up to: 144 kN
• Protection class: IP 58
• Blade opening: 1018 mm
• Spreading force: 500 kN
• Pulling force up to: 50 kN
• Pulling distance: 858 mm
• Item number (SKU): 94-15-32
