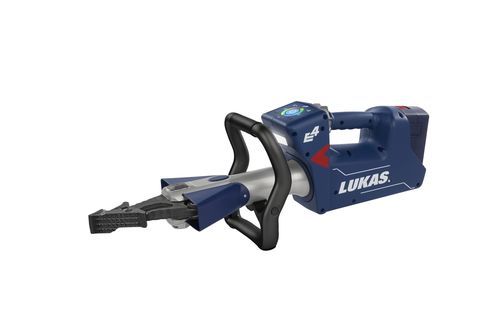

Battery-operated hydraulic spreader-cutter SC 258 E4 CONNECT

portable

Product overview
The SC 258 E4 CONNECT combi is a lightweight, agile rescue tool designed for rapid intervention teams. It combines cutting and spreading functions with full E4 intelligence to support fast, versatile operations.

Key features

• LUKAS Intuitive Dashboard with multi-sensory alerts and remaining-stroke indicator
• Captium™ live data diagnostics to reduce downtime
• Smart asset tracking + LUKAS Geofencing
• Integrated high-intensity lightbar
• Turbo mode for faster tool movements

Combined cutting and spreading performance
Delivers powerful cutting and spreading capability in a single tool, enabling efficient interventions without swapping equipment. Suited to dynamic rescue scenarios where speed and flexibility are essential.

Intuitive dashboard
Provides real-time feedback including roll warnings and stroke indication, helping operators maintain safe tool positioning and avoid overloads or stalls during operations.

Ergonomic handle
A 360° ergonomic design enables precise control from any angle, supporting safe and comfortable operation in confined or unpredictable environments.

Compact, agile design
The compact, well-balanced form allows operators to manoeuvre quickly in tight spaces and challenging environments, making it ideal for first-response scenarios.

Integrated light bar
Illuminates the working area directly to improve visibility of structures, contact points and hazards, reducing reliance on external lighting and enhancing operational accuracy.

Captium™ connectivity with Geofencing
Keeps tools connected, monitored and mission-ready. Real-time diagnostics and alerts support operational readiness while geofencing ensures equipment remains secure and traceable.

Integrated on-tool charging
Provides direct-to-tool charging to eliminate battery swaps and ensure equipment is always ready for deployment.

Advantages

• POWER UNDER e³ CONTROL: intelligent dashboard with performance diagnostics
• Optimized blade geometry with large opening width
• Smart turbo function for faster, safer work
• Wide blade opening up to the central bolt
• Extended operating time with new 9 Ah rechargeable battery
• Can operate up to 60 minutes in fresh and salt water at 3 m depth
• Battery replacement possible underwater

Technical Data
Dimensions: 825 x 226 x 284 mm
Weight: 15.1 kg
Protection class: IP 58
Spreading distance: 321 mm
Pulling force up to: 37 kN
Pulling distance: 333 mm

Technical specifications

• Item number (SKU): 94-35-14
• Dimensions: 825 x 226 x 284 mm
• Weight: 15.1 kg
• Protection class: IP 58
• Spreading distance: 321 mm
• Pulling force up to: 37 kN
• Pulling distance: 333 mm
• Connectivity: Captium™ (real-time diagnostics, geofencing)
• Rechargeable battery (e.g. 9 Ah) with underwater replacement capability
