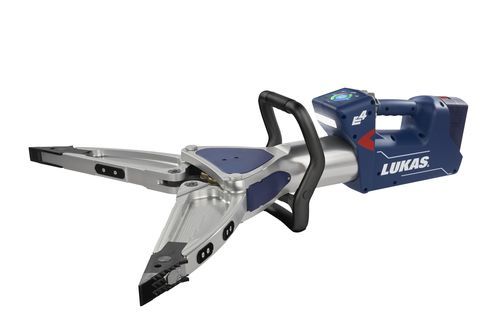

Battery-operated hydraulic spreader SP778 E4

portable

Overview
The SP778 spreader provides the widest tip opening in the range, designed for large‑scale vehicle extrication and structural displacement tasks that demand extended reach and high spreading force.

Features

• LUKAS Shark‑Tooth tips for improved grip and stability
• LUKAS intuitive dashboard with multisensory alerts and remaining‑stroke indicator
• 360° ergonomic handle for flexible positioning
• Integrated light bar for task‑focused illumination
• IP68‑rated rescue battery and on‑tool charging

LUKAS Shark‑Tooth tips
Multi‑angle tooth geometry bites into modern vehicle materials to prevent slippage under load, enabling controlled spreading and increased safety for rescuers and casualties.

Intuitive dashboard
Provides real‑time feedback on tool position and system status, including a clear remaining‑stroke indicator to support safe, confident operation in demanding conditions.

Ergonomic handle
Two‑component injection‑moulded design combines strength and comfort, allowing precise control from any working position and reducing operator fatigue in confined or unstable environments.

Integrated light bar
Delivers powerful, uniform illumination at the point of action to enhance visibility of contact points, structures and hazards for safer and faster operations.

IP68‑rated rescue battery
Fully sealed for extreme rescue conditions — resistant to water, mud, fuel and debris — providing reliable, consistent power on every deployment.

Integrated on‑tool charging
Direct-to‑tool charging removes the need for frequent battery swaps and ensures the tool remains mission‑ready.

Technical characteristics / specifications

• Item number: 94-10-32
• Dimensions: 1140 x 309 x 311 mm
• Weight: 25.1 kg
• Squeezing force up to: 144 kN
• Protection class: IP 58
• Blade opening: 1018 mm
• Spreading force: 500 kN
• Pulling force up to: 50 kN
• Pulling distance: 858 mm
