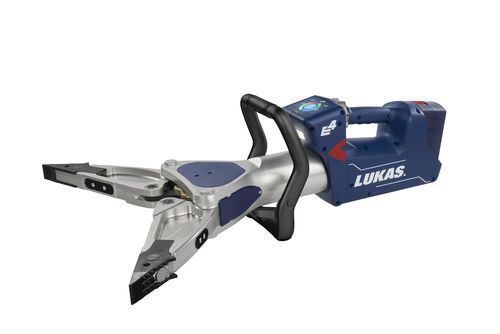

Battery-operated hydraulic spreader SP775 E4

portable

Overview
The SP775 SPREADER delivers a combination of reach, force and intelligent control for complex vehicle extrication and heavy rescue operations.

Features

• LUKAS Shark‑Tooth tips for increased grip and stability
• LUKAS intuitive dashboard with multi‑sensory alerts and remaining‑stroke indicator
• 360° ergonomic handle for precise control

LUKAS Shark‑Tooth Tips
Designed to bite into modern vehicle materials, the multi‑angle tooth geometry prevents slippage under load and ensures controlled spreading for safer rescues.

Intuitive dashboard
Provides real‑time feedback on tool position and system status, with a clear stroke indicator to support accurate operator judgement in all conditions.

Ergonomic handle
Two‑component injection‑moulded handle balances strength and comfort, reducing operator fatigue and allowing confident handling in confined or unstable environments.

Integrated light bar
Delivers consistent illumination at the point of action to improve visibility of contact points, structures and hazards during operations.

IP68‑rated rescue battery
Fully sealed and designed for extreme rescue conditions (water, mud, fuel, debris), the battery ensures reliable power and sustained performance on deployments.

Integrated on‑tool charging
Direct-to-tool charging removes the need for battery swaps, keeping the tool mission‑ready and simplifying logistics on scene.

Advantages

• POWER UNDER e³ CONTROL: intelligent dashboard with performance diagnostics
• Optimised blade geometry with large opening width
• Smart turbo function for rapid, controlled work
• Broad blade opening up to the central bolt
• Extended runtime with new 9 Ah rechargeable battery
• Operable up to 60 minutes at 3 m depth in fresh and salt water
• Possible battery change under water

Technical data
Dimensions: 991 x 269 x 311 mm
Weight: 20.7 kg
Squeezing force up to: 105 kN
Protection class: IP 58
Blade opening: 800 mm
Spreading force: 698 kN
Pulling force up to: 55 kN
Pulling distance: 637 mm

Characteristics / Technical specifications

• Model: SP775 E4
• Brand: Lukas Hydraulik
• Item number (SKU): 94-10-33
• Dimensions: 991 x 269 x 311 mm
• Weight: 20.7 kg
• Squeezing force: 105 kN
• Spreading force: 698 kN
• Blade opening: 800 mm
• Pulling force: 55 kN
• Pulling distance: 637 mm
• Protection class: IP 58
• Battery: IP68‑rated rescue battery (fully sealed, designed for water, mud, fuel and debris)
