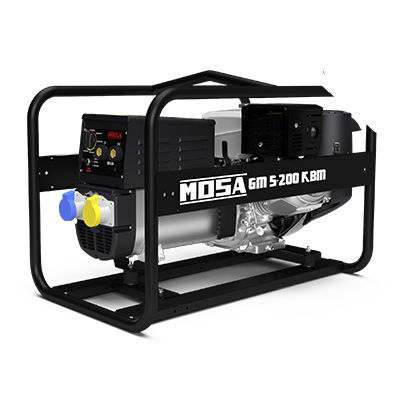

Single-phase welding generator GM 5-200 KBM

portable

Petrol Engine driven welder - KOHLER CH 440 COMMAND PRO Engine - Single-phase asyncronous alternator WELDING • Welding current: 40A / 21.6V ÷ 200A / 20V • Service: 160A / 26.4V - 60%, 120A / 24.8 - 100% • Open circuit voltage (no-load voltage): 85 V POWER RATINGS • Single-phase power max: 5 kVA (kW) / 230 V / 21.7 A • Single-phase power PRP: 4 kVA (kW) / 230 V / 17.4 A • Single-phase power max: 2.5 kVA (kW) / 115 V / 21.7 A • Single-phase power PRP: 2 kVA (kW) / 115 V / 17.4 A GENERAL SPECIFICATION • Tank capacity: 6.1 l • Running time (welder 60%): 2.9 h • Measured acoustic power LwA (pressure LpA): 97 dB(A) (71 dB(A) @ 7m) • Guaranteed acoustic power LwA (pressure LpA): 97 dB(A) (71 dB(A) @ 7m) • Weight: 99 Kg • Dimensions max. on base Lxlxh: 870x525x613 mm
