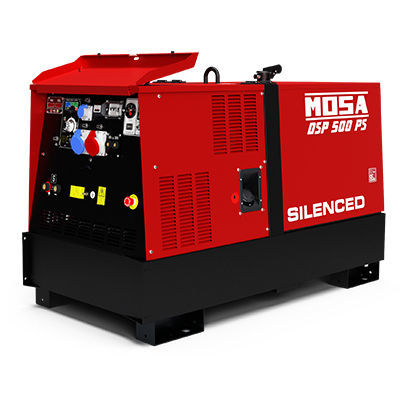

Three-phase welding generator DSP 500 PS
single-phase

Three-phase welding generator - DSP 500 PS - MOSA - single-phase
Three-phase welding generator - DSP 500 PS - MOSA - single-phase
Add to favorites
Compare this product

Characteristics

Power supply
single-phase, three-phase
Intensity

Min.: 10 A

Max.: 500 A

Description

Diesel Engine driven welder - PERKINS 404D-22G Engine - Three-phase asyncronous alternator WELDING • Welding current: 10A ÷ 500A • Welding current electronic regulation: continues on 2 scales • Service: 500A - 35%, 450 A - 60%, 400A - 100% • Open circuit voltage (no-load voltage): 62 Vdc POWER RATINGS • Three-phase power: 16 kVA (12.8kW) / 400 V / 23.1 A • Single-phase power: 12kVA (9.6kW) / 230 V / 52.2 A • Single-phase power:6 kVA (6kW) / 110 V / 54.5 A • Single-phase power: 5 kVA/kW / 48V / 104 A GENERAL SPECIFICATION • Tank capacity: 60 l • Running time (welder 60%): 16 h • Measured acoustic power LwA (pressure LpA): 93.5 LWA (68.5 dB(A) @ 7m) • Guaranteed acoustic power LwA (pressure LpA): 95 dB(A) (70 dB(A) @ 7 m) • Weight: 750 Kg • Dimensions max. on base Lxlxh: 1720x850x1128 mm
