TIG welding generator TS 400 PS
three-phasesingle-phasewater-cooled

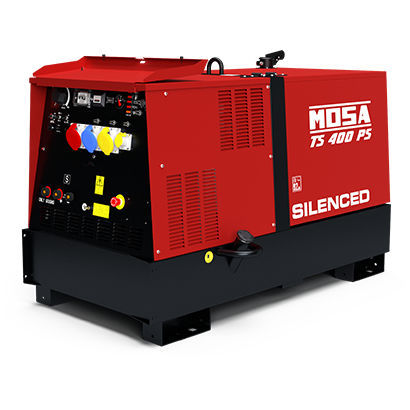

TIG welding generator - TS 400 PS - MOSA - three-phase / single-phase / water-cooled
TIG welding generator - TS 400 PS - MOSA - three-phase / single-phase / water-cooled
Add to favorites
Compare this product

Characteristics

Technique
TIG
Power supply
single-phase, three-phase
Other characteristics
water-cooled
Intensity

350 A, 400 A

Description

Engine Driven Welder Diesel PERKINS - 404A-22G1 - Three-phase asynchronous Alternator - Water cooling WELDING • Welding current: 400A / 30V (Stick) | 350A / 34V (Stick - IEC rating) | 400A / 26V (Tig) • Welding current electronic regulation: continues on 2 scales: 20A ÷ 200A / 30A ÷ 400A • Service: 350A /34V @ 100% (Stick) | 400A /26V @ 60% - 350A /24V @ 100% (Tig) • Open circuit voltage (no-load voltage): 72 V POWER RATINGS • Three-phase power: 16 kVA / 400 V / 23.1 A • Single-phase power: 10 kVA / 230 V / 43.5 A GENERAL SPECIFICATION • Tank capacity: 60 l • Running time (welder 60%): 19 h • Acoustic pressure: 66 dB(A) @ 7m • Weight: 780 Kg • Dimensions max. on base Lxlxh: 1720x850x1128 mm
