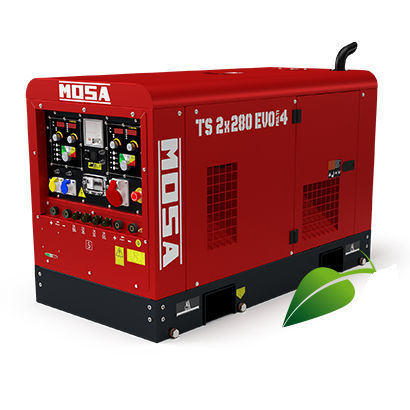

TIG welding generator TS 2x280 EVO MULTI4

three-phasesingle-phaseDC

Engine Driven Welder Diesel YANMAR - 3TNV88 - Three-phase asynchronous Alternator - Water cooling WELDING STICK - TIG • Welding current: 2x250A / 30V (Stick) | 2x250A / 20V (Tig) (DUAL) • Welding current: 500A / 32V (Stick) | 425A / 37V (Stick) (IEC rating) | 500A / 30V (Tig) (SINGLE) • Service 60%: 2x250A / 30V (Stick) | 2x250A / 20V (Tig) (DUAL) • Service 100%: 2x230A / 29,2V (Stick) | 2x230A / 19,2V (Tig) (DUAL) • Service 60%: 480A / 29,2V (Tig) (SINGLE) • Service 100%: 425A / 37V (Stick) | 440A / 27,6V (Tig) (SINGLE) • Open circuit voltage (no-load voltage): 70 Vcc (75 Vcc dc peak) WELDING MIG - FLUX CORED • Welding current: 2x250A / 26,5V (DUAL) • Welding current: 500A / 32V | 440A / 36V (IEC rating) (SINGLE) • Service: 2x250A / 26,5V - 60% / 2x230A / 25,5V - 100% (DUAL) • Service: 40A / 16V - 500A / 32V | 40A / 16V - 440A / 36V (IEC rating) - 100% (SINGLE) POWER RATINGS • Three-phase power: 15 kVA (15 kW) / 400 V / 21.6 A • Single-phase power: 7 kVA (7 kW) / 230 V / 30.4 A • Single-phase power: 5 kVA (5 kW) / 115 V / 43.5 A GENERAL SPECIFICATION • Tank capacity: 60 l • Running time (welder 60%): 13 h • Acoustic pressure LwA: 75 dB(A) @ 7 m • Weight: 725 Kg • Dimensions max. on base Lxlxh: 1600x790x1000 mm
