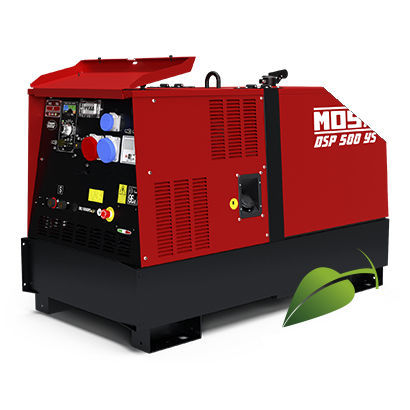

Three-phase welding generator DSP 500 YS

single-phaseelectronicwater-cooled

Engine Driven Welder Diesel YANMAR 4TNV88 - Three-phase asynchronous Alternator - Water cooling WELDING • Welding current: 20A ÷ 500A • Welding current electronic regulation: continues on 2 scales: 20A ÷ 250A / 20A ÷ 500A • Service: 500A - 60% / 450A - 100% • Open circuit voltage (no-load voltage): 62 Vdc (65 Vdc peak) POWER RATINGS • Three-phase power: 16 kVA / 400 V / 23.1 A • Single-phase power: 10 kVA / 230 V / 43.5 A GENERAL SPECIFICATION • Tank capacity: 60 l • Running time (welder 60%): 19 h • Measured acoustic power LwA (pressure LpA): 94 dB(A) (69 dB(A) @ 7 m) • Guaranteed acoustic power LwA (pressure LpA): 95 dB(A) (70 dB(A) @ 7 m) • Weight: 720 Kg • Dimensions max. on base Lxlxh: 1720x850x1128 mm
