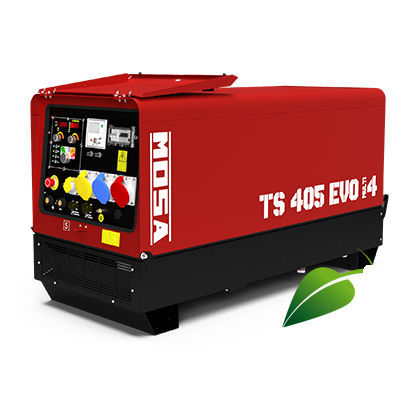

TIG welding generator TS 405 EVO MULTI4

three-phasesingle-phase

Engine Driven Welder Diesel KOHLER KDW1003 - Three-phase asynchronous Alternator - Water cooling WELDING • Welding current: 20A / 20.8V ÷ 400A / 20V (Stick) | 20A / 10.8V ÷ 400A / 20V (Tig) • Service: 330A @ 33.2V / 60% - 300A @ 32V / 100% (Stick) | 380A@ 25.2V / 35% - 330A@ 23.2V/ 60% - 300A@ 22V / 100% (Tig) • Open circuit voltage (no-load voltage): 75 Vcc (79 Vcc peak) POWER RATINGS • Three-phase power: 14 kVA (11.2 kW) / 400 V / 20.2 A • Single-phase power: 8 kVA/kW / 230 V / 34.8 A • Single-phase power: 4 kVA/kW / 110 V / 36.4 A • Single-phase power: 5 kVA/kW / 48 V / 104 A GENERAL SPECIFICATION • Tank capacity: 38 l • Running time (welder 100%): 11.5 h • Guaranteed acoustic power LwA (pressure LpA): 96 dB(A) (71 dB(A) @ 7 m) • Measured acoustic power LwA (pressure LpA): 94.7 dB(A) (69.7 dB(A) @ 7 m) • Weight: 455 Kg • Dimensions max. on base Lxlxh: 1433x710x945 mm
