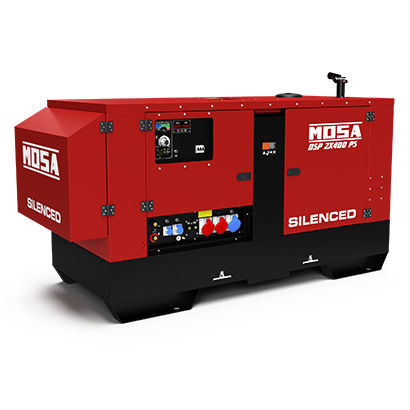

TIG welding generator DSP 2x400 PS

three-phasesingle-phase

Diesel Engine driven welder - PERKINS 1103A - 33TG1 Engine - Three-phase asyncronous alternator WELDING • Welding current: 2x10 ÷ 400 A (STICK-TIG) • Welding current electronic regulation: continues on 2 scales 2x10A ÷ 200A | 2x10A ÷ 400A • Service: 2x400 A 35% | 2x360 A 60% | 2x330 A 100% • Open circuit voltage (no-load voltage): 68 V POWER RATINGS • Three-phase power: 40 kVA (30kW) / 400 V / 57.8 A • Single-phase power: 20 kVA/kW / 230 V / 87 A • Single-phase power: 10 kVA (8kW) / 110 V / 90.9 A • Single-phase power: 5 kVA/kW / 48V / 104 A GENERAL SPECIFICATION • Tank capacity: 102 l • Running time (welder 60%): 15 h • Measured acoustic power LwA (pressure LpA): 89 dB(A) (64 dB(A) @ 7 m) • Guaranteed acoustic power LwA (pressure LpA): 90 dB(A) (65 dB(A) @ 7 m) • Weight: 1350 Kg • Dimensions max. on base Lxlxh: 2490x1030x1480 mm
