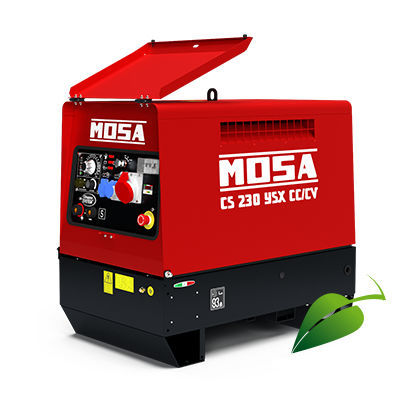

Three-phase welding generator CS 230 YSX
single-phase

Three-phase welding generator - CS 230 YSX - MOSA - single-phase
Three-phase welding generator - CS 230 YSX - MOSA - single-phase
Add to favorites
Compare this product

Characteristics

Power supply
single-phase, three-phase
Intensity

Max.: 210 A

Min.: 20 A

Description

Diesel Engine driven welder - YANMAR L 100 V Engine - Three-phase asyncronous alternator WELDING • Welding current: 20 ÷ 210 A • Welding voltage: 14 ÷ 44V • Welding current electronic regulation: continues • Service: 210A 60% | 180A 100% • Open circuit voltage (no-load voltage): 68 V POWER RATINGS • Three-phase power: 6kVA (4.8kW) / 400 V / 8.7 A • Single-phase power: 5kVA (4kW) / 230 V / 21.7 A • Single-phase power: 2.5kVA (4kW) / 110 V / 22.7 A GENERAL SPECIFICATION • Tank capacity: 23 l • Running time (welder 60%): 20 h • Measured acoustic power LwA (pressure LpA): 91.2 dB(A) (66.2 dB(A) @ 7 m) • Guaranteed acoustic power LwA (pressure LpA): 93 dB(A) (68 dB(A) @ 7 m) • Weight: 230 Kg • Dimensions max. on base Lxlxh: 1055x650x911 mm
