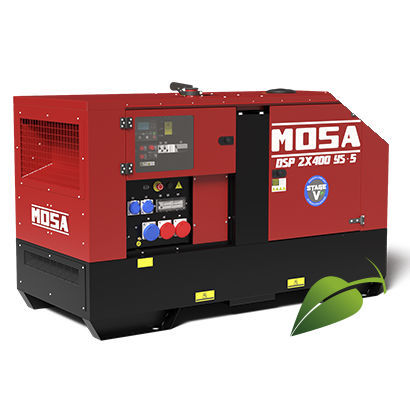

TIG welding generator DSP 2x400 YS-5

three-phasesingle-phaseelectronic

Diesel Engine driven welder - YANMAR 4TNV98T Engine - Three-phase asyncronous alternator WELDING • Welding current: 2x400A / 36V (STICK) / 2x400A / 26V (TIG) • Welding current electronic regulation: continues on 2 scales 2x20A/20,8V - 200A/28V | 2x20A/20,8V - 400A/36V (STICK) / 2x20A/10,8V - 200A/18V | 2x20A/10,8V - 400A/26V (TIG) • Service: 2x400A/36V @ 35% | 2x360A/34.5V @ 60% | 2x330A/33.2V @ 100% (STICK) • 2x400A/26V @ 35% | 2x360A/24.5V @ 60% | 2x330A/23.2V @ 100% (TIG) • Open circuit voltage (no-load voltage): 68 Vcc / Vdc POWER RATINGS • Three-phase power: 40 kVA (30kW) / 400 V / 57.8 A • Single-phase power: 20 kVA/kW / 230 V / 87 A • Single-phase power: 10 kVA (8kW) / 110 V / 90.9 A • Single-phase power: 5 kVA/kW / 48V / 104 A GENERAL SPECIFICATION • Tank capacity: 102 l • Running time (welder 60%): 19.5 h • Pressure acoustic: 64 dB(A) @ 7m • Guaranteed acoustic power: 91 dB(A) • Weight: 1245 Kg • Dimensions max. on base Lxlxh: 2271x1038x1451 mm
