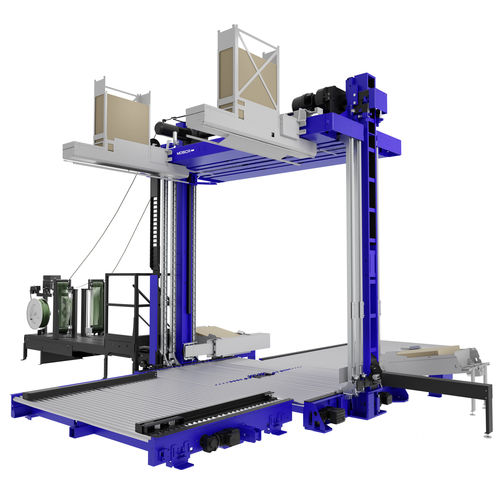

Fully-automatic strapping machine KCK series

for pallet trucksfor polyester strapsfor the packaging industry

Overview
The KCK series pallet baling press is a fully automatic machine for compacting and strapping palletized goods. Available pressing forces are 30,000 N or 50,000 N, with an optional high‑speed package increasing pressure to 33,000 N or 55,000 N and raising cycle output. The overhead, weight‑reduced SoniXs sealing unit (32 kg) is removable via quick‑release fasteners to simplify maintenance.

Application
Designed for securing transported goods such as print media, foodstuffs and corrugated cardboard. The press compacts packages before strapping to prevent strap loosening during transit. Integration into processing lines is possible via potential‑free contacts for upstream and downstream machines.

Standard features

• SoniXs ultrasonic sealing system (removable upper unit)
• Up to four belt guide tongues for palletized packages
• Belt guide spacing options: 440 mm, 625 mm, 810 mm
• 1–2 laterally movable sealing units
• Siemens PLC control with touchscreen (12" panel optional)
• Configurable strapping programs and service locking device
• Permanent lubrication of bearings and pinions
• Compatible with PET strapping

Options

• 3‑part signal light with end‑of‑strap detection
• Closed lower hinge guide (except specific variants)
• Automatic electric edge protector feed (top and bottom)
• Pallet length measurement
• High‑speed drive / High‑speed package for increased output
• BSG 4 strap welding unit
• Protective grille and air conditioner
• Data interface for product‑dependent program preselection

Versions

• [K_R] Basic model | driven roller conveyor
• [K_K] Variant | driven roller conveyor with lifting rotary mechanism
• [K_Z] Variant | driven roller conveyor with centering device
• [K_A] Variant | driven roller conveyor with lifting turnstile and centering device
• [K_T] Variant | driven roller conveyor with turntable
• [K_S] Variant | driven roller conveyor with side‑travel turntable

Performance notes
Typical throughput up to 220 pallets/h without edge protectors and up to 185 pallets/h with top and bottom edge protectors (with high‑speed package, 2‑fold vertical strapping, transport 24 m/min — dependent on product and configuration).

Strapping material
Suitable for PET straps: widths 9.50 mm–12.50 mm; thickness 0.54 mm–0.66 mm. Strap coil dispenser core diameter: 406 mm.

Packages / Videos
Application and customer videos demonstrate KCK models in corrugated cardboard applications and with corner protection.

Technical specifications

• Pressing force: 30,000 N or 50,000 N (standard); optional high‑speed: 33,000 N or 55,000 N
• Strap tension: infinitely adjustable from 200 N to 2,500 N
• Passage width: 1,800 mm to 3,200 mm (200 mm increments)
• Conveyor delivery height: minimum 300 mm
• Electrical supply: 400 V, 50 Hz, 3L+N+PE (other voltages on request)
• Power consumption: approx. 23.5 kVA (dependent on configuration)
• Approx. weight: 5,000 kg (without options)
• Belt guide configurations: 2, 3 or 4 heads (examples: 440 mm, 625 mm, 810 mm and asymmetrical arrangements)
