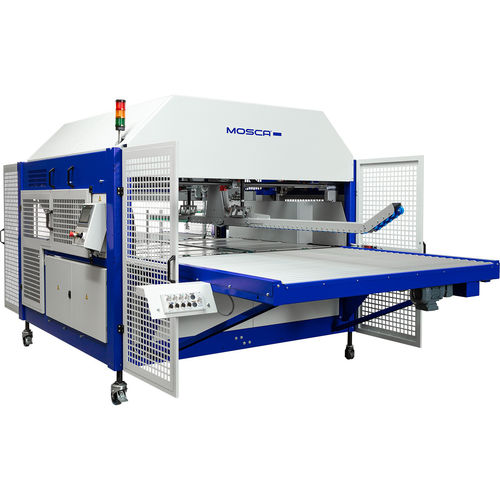

Fully-automatic strapping machine MCB-2

strapping machinefor cartonsfor polypropylene straps

Overview
The MCB-2 and MCB-2 XT are fully automatic inline strapping machines for corrugated cardboard stacks. They perform gentle strapping along the corrugated flutes and include a 5-sided electromechanical product alignment system. Optional equipment includes the BSG 2 automatic strap welding device for near‑continuous production and a Lite interface for automatic product changeovers. The MCB-2 XT adds a second mobile strapping unit for parallel strapping of unstable or large stacks.

Key features

• Fully automatic inline strapping for corrugated cartons
• Hot-wedge (wedge) stitching / welding unit with electronic temperature control
• Energy-efficient electric drives and Siemens PLC with touch panel
• Suitable for PP strapping (5–9 mm)

Standard features

• All strapping performed along the inline shaft
• Hot-wedge welding unit with electronic temperature regulation
• 5-sided electromechanical package alignment
• Potential-free contacts for upstream/downstream integration
• Automatic format setting by scanning the first package (teach-in)
• Strapping positions adjustable up to 90 mm from package centre (10 mm / 30 mm increments)
• Rail undercarriage with mechanical locking
• MCB-2 XT: two mobile units for parallel strapping

Options

• Signal light (LED)
• Air conditioning for switch cabinet
• Automatic strap welding (BSG 2 + additional spool)
• QA system for automatic ejection of faulty stacks
• Lite interface for automatic product changeovers
• Lateral motorised adjustment unit
• Powered outfeed
• Pressure roller bar extended by 1.0 m or 1.5 m
• Special conveyor heights and custom variants

Applications & operation
Designed for inline strapping of corrugated cardboard cartons and stacks. Configurations support high uptime (automatic strap welding), automatic format adaptation (teach-in), conveyor integration and quality-control options for automatic rejection of defective stacks.

Technical data (selected)
Performance: Up to 27 single strappings/min at 1.4 m/s pusher speed and 200 mm package length
Passage width: 1,300 mm (MCB-2); 1,600 mm (MCB-2 / MCB-2 XT)
Conveyor height: 820–1,000 mm (with chassis and lateral adjustment unit); 860–1,000 mm (without lateral unit, incl. locking mechanism)

Size specifications (in mm)
Length | Width | Height
Minimum package size* | 240 | 170/330 | 40
Max. package size** | 1,300 | 1,300/1,600 | 350

(without a package aligner at the rear)
* Lengths 170–240 mm available only with the "package removal from strapping" option
** Lengths over 1,300 mm: only one pusher required (double pusher is standard)

Strapping material

• PP strap: width 5 mm – 9 mm; thickness 0.35 mm – 0.55 mm

Strap coil dispenser
Core diameter: 200 mm
Core length: 190 mm

Electrics
Mains voltage: 400 V, 50/60 Hz, 3L+N+PE (other voltages on request)
Power consumption: approx. 4 kVA (depending on configuration)

Weight
Approx. 1,500 kg (passage width 1,300 mm, without options)
Approx. 1,700 kg (passage width 1,600 mm, without options)

Versions / notes

• MCB-2: standard inline strapping machine
• MCB-2 XT: extended variant with second mobile strapping unit for parallel strapping and handling unstable/large stacks
• Optional automatic strap welding (BSG 2) and Lite interface enable near-continuous operation and automatic changeovers
