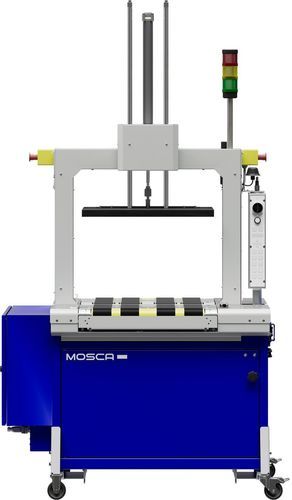

Fully-automatic strapping machine SoniXs P7-Connect B

automaticfor PP-PET strapsfor polyester straps

Overview
The SoniXs P7-Connect B is a compact automatic strapping machine designed for confined production areas and easy integration into automated lines. The strap coil can be loaded from the front or the side. Optional Mosca digital packages enable remote monitoring and data exchange.

Key features

• Fully automatic strapping machine
• SoniXs ultrasonic sealing system – Standard‑7
• Suitable for PP strapping (5–12 mm)
• Space-saving design with front/side coil insertion
• Optional Mosca digital package (WebHMI, OPC UA, WLAN)

Standard features

• Infinitely adjustable conveyor speed: 0.1–1.0 m/s
• Product recipes for package-dependent settings
• Tool-free disassembly of strap path components
• Digital display and intuitive WebHMI user guidance
• Folding tables for improved access
• Potential-free contacts for upstream/downstream integration
• Rotating control panel (0–180°)
• Adjustable and programmable strap tension and weld energy
• Selectable soft strapping for sensitive packages
• Front and side coil change; easy threading system
• Strap end detection with remainder ejection; automatic ring ejector
• Extremely low energy consumption; stand-by function
• 4 castors, 2 lockable; CE marking

Options

• Safety spring rollers in inlet/outlet
• Lateral product guides
• Emergency-stop interface
• Light barrier for jam monitoring and start/stop
• Pneumatic hold-down device
• Product recognition package
• Signal light (LED)
• Alternative castor configurations and table extensions
• Height adjustment / lowered suspension (H and height ranges)
• Pre-end-of-band query and signal exchange options
• OPC UA interface and configurable signals
• WLAN module for WebHMI access

Applications & benefits

• Designed for cross-industry strapping tasks
• Compact footprint for restricted production spaces
• Smooth integration in automated lines via potential-free contacts and interfaces
• Low operating costs due to energy efficiency and easy coil handling

Consumables / Strapping

• Compatible with Mosca PP and PET straps (PP: width 5–12 mm; thickness 0.40–0.63 mm)
• Also compatible with alternative recyclable paper straps where applicable

Digitalization

• Optional Mosca digital packages: WebHMI, remote monitoring, recipe management and diagnostics
• OPC UA and configurable signal exchange for Industry 4.0 integration

Service & Maintenance

• Mosca service concept (installation, training, spare parts, maintenance contracts)
• Tool-free maintenance of strap path components for fast interventions

Technical data / Specifications

• Model: SoniXs P7-Connect B
• Operating mode: automatic / fully automatic
• Throughput: up to 35 packages/min (depending on configuration)
• Frame sizes (W x H): 600×600 mm; 800×600 mm; 1000×800 mm
• Strapping (PP): width 5–12 mm; thickness 0.40–0.63 mm
• Coil core Ø: 200 mm; core length: 190 mm
• SoniXs sealing: Standard‑7 ultrasonic
• Conveyor speed: 0.1–1.0 m/s (infinitely adjustable)
• Power supply: 100–240 V, 50/60 Hz, 1L+N+PE
• Power consumption: approx. 0.3 kW (depending on configuration)
• Weight: approx. 260 kg (without options)
• Integration features: potential-free contacts, OPC UA (option), configurable signals
