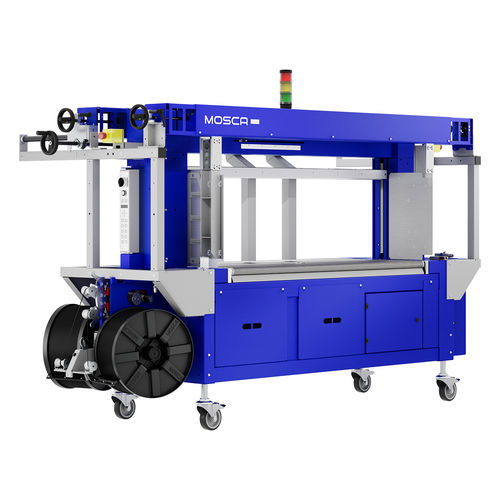

Fully-automatic strapping machine SoniXs TRC-6

for cartonsfor polypropylene straps230V single phase

Overview
The SoniXs TRC-6 is a fully automatic strapping machine designed for wide corrugated board and paper applications. Its extra-wide frame accepts products up to 2,600 mm. Optional pneumatic side pusher and package stop enable precise 5-sided alignment. The SoniXs Standard-6 ultrasonic sealing unit and optional double dispenser ensure high availability and continuous operation.

Integration
Designed for direct integration into production lines via potential-free contacts. Optional components such as a double unwinder allow uninterrupted operation at high speeds typical of the corrugated board industry.

Key features

• Fully automatic strapping machine (wide-frame)
• SoniXs Standard-6 ultrasonic sealing technology
• Suitable for PP straps (5–12 mm)
• Optional 5-sided package alignment and package stop
• Optional automatic reel change (double dispenser)

Standard features

• Potential-free contacts for upstream and downstream machine integration
• Selection for single, double or multiple strapping (Multistrap)
• Infinitely adjustable conveyor speed 0.1–1.0 m/s
• Process optimization by adapting machine to defined package dimensions
• Electromechanically driven aluminium rollers for optimal product transport
• Tool-free removal of transport roller system and belt-path components
• Pneumatic hold-down device with manual pre-positioning
• Package positioning over time
• Strap end query with strap remainder ejection
• 4 swivel castors, 2 lockable
• Simple operation via digital display on control panel
• CE marking with Declaration of Conformity
• Extremely low energy consumption

Options

• Pneumatic side pusher (5-sided alignment)
• Fully automatic reel change via double dispenser
• Pneumatic package stop with manual pre-positioning
• Automatic belt tension adjustment via package height query
• Signal light (LED)
• Preliminary end-of-strap query with signal to control unit
• Special frame heights and customised configurations

Technical data (summary)
Performance
Up to 38 parcels/min (example 1,250 x 600 mm)

Pneumatics
Consumption: 3.5 Nl/cycle (with hold-down); 5.8 Nl/cycle (with pneumatic stop or side pusher). Operating pressure: 6 bar

Conveyor technology
Height adjustable from 765 mm to 980 mm

Frame sizes
Width x height: 1,000 x 600 mm; 1,250 x 600 mm; 1,650 x 600 mm; 2,200 x 600 mm; 2,600 x 600 mm

Strapping material
PP straps: width 5–12 mm; thickness 0.40–0.80 mm

Strap coil dispenser
Core diameter: 200 mm; core length: 190 mm

Electrics
Mains voltage: 100–240 V, 50/60 Hz, 1L+N+PE (other voltages on request). Power consumption: approx. 0.4 kW (depending on configuration)

Weight
From 450 kg to 730 kg depending on configuration

Specifications

• Model: SoniXs TRC-6
• Manufacturer / Brand: Mosca
• Application: Wide corrugated board and paper strapping
• Options: side pusher, double dispenser, package stop, automatic tensioning, LED signal light, strap end query
