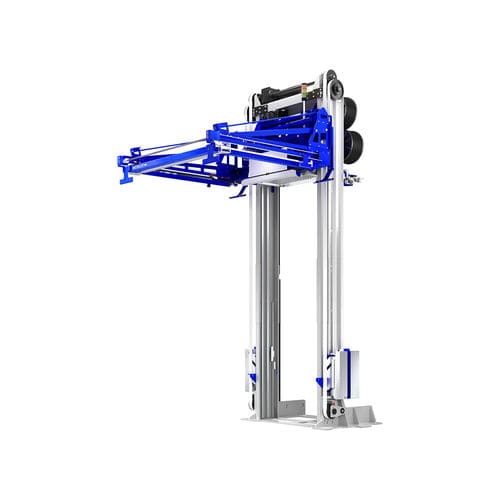

Fully-automatic strapping machine SoniXs MS-6 H

for polyester strapsfor PP-PET strapsfor polypropylene straps

Description
The SoniXs MS-6 H is a fully automatic horizontal strapping machine designed for high-throughput industrial packaging. The strapping frame moves vertically and horizontally, allowing secure strapping of low-height (from 100 mm above conveyor) and large or bulky products without precise alignment to a reference edge. The SoniXs ultrasonic sealing unit (Standard-6) provides reliable welds while reducing material stresses. An optional automatic double dispenser enables uninterrupted reel changes for extended production shifts.

Key features

• Fully automatic horizontal strapping machine
• SoniXs ultrasonic sealing system (Standard-6)
• Vertical and horizontal frame movement for flexible product positioning
• Suitable for PP and PET strapping
• Up to 280 double-strapped packages per hour (configuration dependent)

Standard features

• SoniXs ultrasonic sealing unit, Standard-6 model
• Potential-free contacts for upstream and downstream equipment
• High sealing tension due to minimal distance between package and sealing unit
• Programmable control via operator panel
• Adjustable strap tension via touch panel
• Low-wear, force-controlled belt guide
• Belt-guide frame movement via toothed-belt drive
• Strap-end detection with strap remainder ejection
• DC drives with wear-free direct drives
• 10 freely configurable programs with up to 10 strapping positions

Options

• Fully automatic reel change via double dispenser
• 3-part signal tower with pre-end-of-strap detection
• Core dispenser Ø 406 mm option for PET
• Electric belt holding device
• Horizontal frame travel up to 350 mm
• Data interface for product-dependent program preselection
• Protective grille
• Muting system
• Conveyor integration options

Technical data
Performance
Up to 280 packages/h without product transport with a frame size of 1,400 x 1,400 mm, product height 2,000 mm, double strapping (high speed). High-speed vertical travel: 1 m/s. High-speed vertical and horizontal travel: 1 m/s and 0.35 m/s.

Format sizes (frame size → max. package [L x W])
Frame size 1,000 x 1,000 mm → max. 800 x 800 mm
Frame size 1,400 x 1,000 mm → max. 1,200 x 800 mm
Frame size 1,400 x 1,400 mm → max. 1,200 x 1,200 mm
Frame size 1,600 x 1,600 mm → max. 1,400 x 1,400 mm
Height incl. pallet: max. 3,000 mm

Strapping material

• PP: width 8 mm - 12 mm, thickness 0.45 mm - 0.80 mm
• PET: width 9.50 mm - 12 mm, thickness 0.54 mm

Strap coil dispenser

• Standard core diameter: 200 mm (optional 406 mm for PET)
• Core length: 190 mm (optional 150 mm for PET)

Electrics

• Mains voltage: 400 V, 50/60 Hz, 3L+N+PE (other voltages on request)
• Power consumption: approx. 3.5 kW (depending on configuration)

Drive / Mechanics

• Direct current technology with wear-free direct drives
• Low-wear belt guide and toothed-belt driven frame movement

Technical specifications

• Model: SoniXs MS-6 H
• Brand: Mosca
• Max throughput: up to 280 double-strapped packages/hour (depending on frame/product parameters)
• Minimum strapping height above floor/conveyor: 100 mm
• Vertical frame travel speed: up to 1 m/s
• Horizontal frame travel speed: up to 0.35 m/s
• Frame size options and corresponding maximum package footprints as above
• Strapping types supported: PP and PET (specified widths/thicknesses above)
• Optional double dispenser for uninterrupted reel change
• Strap coil core diameters: 200 mm standard; 406 mm optional for PET
• Mains: 400 V, 50/60 Hz, 3L+N+PE (other voltages on request)
• Typical power consumption: approx. 3.5 kW (configuration dependent)
• Machine weight: approx. 1,700 kg
