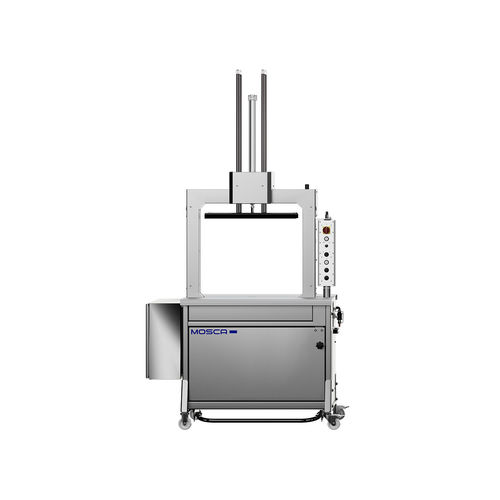

Automatic strapping machine SoniXs MP-6 T-VA

for polypropylene straps230V single phasefor the food industry

Product description
The SoniXs MP-6 T-VA is an automatic strapping machine engineered for food‑industry and other corrosion‑sensitive environments. The machine uses predominantly V4A stainless steel and corrosion‑resistant aluminum components. The control cabinet and operator panel are sealed to protect against splashes and contamination, enabling reliable operation in cold, humid or washdown conditions.

Automatic SoniXs MP-6 T-VA (entry-level for food industry)
As an entry‑level model for hygienic applications, the SoniXs MP-6 T-VA integrates the SoniXs Standard‑6 ultrasonic sealing unit optimized for PP straps. It features easy accessibility, tool‑free maintenance and a mobile chassis for flexible placement.

Key features

• Automatic strapping machine
• SoniXs ultrasonic sealing system — Standard‑6
• Suitable for PP strapping (5–12 mm)
• Corrosion‑resistant construction (mainly V4A stainless steel)

Standard features

• Selectable soft strapping mode for delicate packages
• Quick‑change coil system — coil change from front or side
• Mobile design with 2 fixed castors and 2 swivel castors (lockable swivel castors)
• Corrosion‑resistant SoniXs ultrasonic sealing system (Standard‑6 configuration)
• Tool‑free disassembly and optimum accessibility of strap path components
• Infinitely variable rotating control panel (0–180°) for multi‑angle operation
• Adjustable strap tension via control panel
• Strap end detection with strap remainder ejection
• Machine mainly constructed of V4A stainless steel (corrosion‑resistant)
• Protection class IP56
• Sensitive components (motors etc.) protected with additional sheet‑metal covers
• CE marking with Declaration of Conformity
• Extremely low energy consumption

Options

• Table extension 90 mm
• Balls or rollers in table top
• Manual strapping release via additional fixed or flexible foot switch
• Parameter control panel for setting strapping parameters
• Automatic strapping release via light sensor
• 4 swivel castors (2 lockable) as alternative
• Automatic strap tension adjustment via package height detection
• Pneumatic hold‑down device
• Preliminary strap‑end query with signal to control unit
• Signal light (LED)
• Signal exchange via 16‑pin connector
• Special working heights on request

Technical data
Performance: Up to 50 strappings/min (depending on configuration)
Working height: Adjustable from 820 mm to 925 mm
Frame sizes (W × H): 600 mm × 600 mm
Strapping material (PP): Width 5–12 mm; Thickness 0.40–0.63 mm
Strap coil dispenser — Core diameter: 200 mm; Core length: 190 mm
Electrics: Mains voltage 100–240 V, 50/60 Hz, 1L+N+PE (other voltages on request)
Power consumption: Approx. 0.2 kW (configuration dependent)
Weight: From 200 kg to 260 kg
Protection class: IP56

Characteristics / specifications

• Model: SoniXs MP-6 T-VA
• Application: Automatic stainless‑steel strapping machine for food industry (corrosion‑resistant)
• Sealing: SoniXs ultrasonic Standard‑6
• Strap type: PP
• Strap width: 5–12 mm
• Strap thickness: 0.40–0.63 mm
• Performance: Up to 50 strappings/min
• Working height: 820–925 mm
• Frame / table: 600 × 600 mm
• Coil core: Ø 200 mm, core length 190 mm
• Protection class: IP56
• Construction: Mainly V4A stainless steel and corrosion‑resistant components
• Power supply: 100–240 V, 50/60 Hz (1L+N+PE)
• Power consumption: ~0.2 kW
• Weight: 200–260 kg
