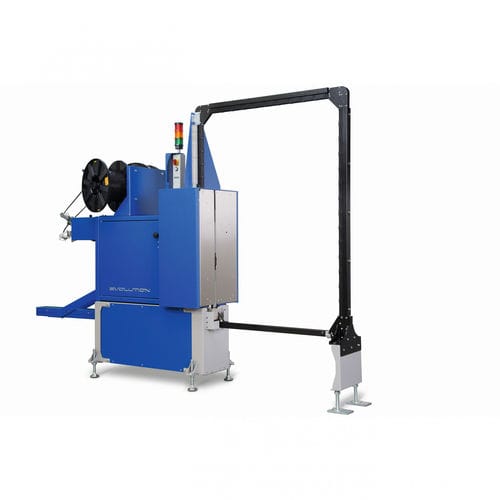

Automatic strapping machine SoniXs MS-6 KR-ZV

for PP-PET strapsfor the packaging industryhorizontal

Overview
The SoniXs MS-6 KR-ZV is an automatic strapping machine engineered for securing bulky goods such as white goods, furniture and palletised products. Its side sealing unit and folding frame allow installation at low conveyor heights while protecting the sealing unit from dust and dirt. The horizontally traversing unit and movable strap guide enable reliable strapping without requiring products to be flush against the unit.

Key features

• Automatic strapping machine with side sealing unit
• SoniXs Standard-6 ultrasonic sealing system
• Compatible with PP and PET straps
• Movable strap guide and horizontal unit traverse for flexible application

Standard features

• Hinge guide tongue for pallets
• Folding (flap) frame with magnetic locking
• Horizontally movable unit up to 340 mm
• Frame size increments in 200 mm steps; customizable frames
• SoniXs ultrasonic sealing system (Standard-6)
• Integration into processing lines possible
• Tool-free disassembly of strap path components for maintenance
• Variable dispenser mounting
• Strap tension adjustable via control panel
• Digital display for simplified machine operation
• Manual strapping release via control panel push button
• Rotating control panel (0–180°) for ergonomic operation
• Low energy consumption
• CE marking with Declaration of Conformity

Options

• Additional table release
• Loading/climbing aid from conveyor height 600 mm
• Low-noise (whisper) guide tongue
• Manual release via flexible foot switch
• Core dispenser Ø 406 mm (option for PET)
• Signal light (LED)
• Preliminary end-of-strap query with signal to control unit
• Signal exchange via 16-pin contact socket
• Fully automatic reel change with double dispenser
• Special working heights on request

Technical data
Performance: Up to 6 strappings/min (example frame 900 x 1600 mm)
Frame size: Width 700–1,500 mm (200 mm steps); Height 1,000–2,800 mm (200 mm steps); max frame circumference 8,350 mm
Strapping material: PP width 12 mm; thickness 0.55–0.80 mm — PET width 9.5–12 mm; thickness 0.54 mm
Dispenser core Ø: 200 mm (standard); 406 mm optional for PET
Dispenser core length: 190 mm (150 mm optional for PET)
Electrics: 100–240 V, 50/60 Hz, 1L+N+PE (other voltages on request)
Power consumption: approx. 0.3 kW (depending on configuration)
Weight: approx. 300–500 kg (depending on configuration)
