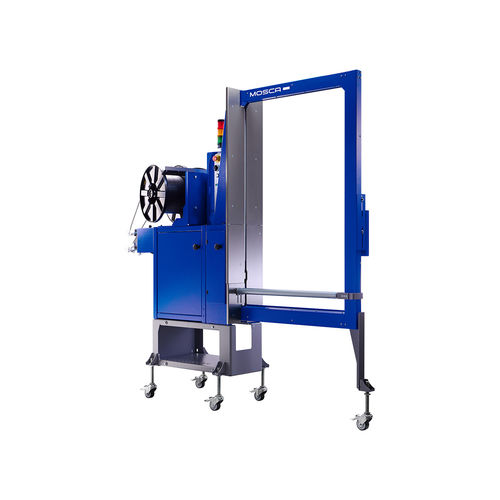

Automatic strapping machine SoniXs MS-6

for PP-PET strapsfor polypropylene strapsfor polyester straps

Overview
The SoniXs MS-6 is an automatic strapping machine with a side sealing unit using SoniXs ultrasonic sealing technology (Standard-6). The lateral unit placement protects the sealing unit from falling particles (dust, dirt), enables low conveyor heights and flexible dispenser positioning. Optional automatic double dispenser supports near-continuous operation. Suitable frame sizes and strap widths allow PP (5–15 mm) and PET (9.5–15 mm) use.

Key features

• Automatic strapping machine
• SoniXs ultrasonic sealing (Standard-6)
• Side sealing unit for low conveyor heights and dust protection
• Compatible with PP and PET straps
• Flexible dispenser positioning; optional double dispenser

Standard features

• Integration into any processing or packaging line
• Optimum accessibility and tool-free disassembly of belt path components
• Hinged stainless steel table
• Adjustable strap tension via control panel
• Digital display for simple machine operation
• Manual strapping release via push button on control panel
• Infinitely variable rotating control panel (0–180°)
• 4 lockable swivel castors
• Extremely low energy consumption
• CE marking with Declaration of Conformity

Options

• Flexible foot switch for manual release
• Pneumatic hold-down device
• Pneumatic side pusher
• Strapping unit for low-height products
• Automatic strap tension adjustment via package height detection
• Signal light (LED)
• Preliminary end-of-strap detection with signal to control unit
• Signal exchange via 16-pin contact socket
• Fully automatic reel change with double dispenser
• Center rolls
• Special conveyor heights / custom configurations

Application video
Application video available demonstrating the SoniXs MS-6 strapping process (example with ramp).

Technical specifications

• Sealing technology: SoniXs ultrasonic sealing (Standard-6)
• Operating mode: Automatic
• Performance: Up to 52 strappings/min (with frame size 550 × 500 mm)
• Conveyor height: 310 mm to 560 mm (adjustable)
• Frame sizes (W × H): 450 × 400 mm; 550 × 500 mm; 650 × 600 mm; 900 × 600 mm; 900 × 1,400 mm; 900 × 1,800 mm; 1,300 × 600 mm; 1,300 × 1,000 mm; 1,300 × 1,400 mm; 1,300 × 1,800 mm; 1,300 × 2,200 mm; 1,650 × 600 mm; 1,650 × 1,800 mm
• Strap material PP: width 5–15 mm; thickness 0.40–0.90 mm
• Strap material PET: width 9.5–15 mm; thickness 0.54–0.66 mm
• Strap coil dispenser: core diameter 200 mm (optional 406 mm for PET); core length 190 mm (optional 150 mm for PET)
• Mains voltage: 100–240 V, 50/60 Hz, 1L+N+PE (other voltages on request)
• Power consumption: 0.2 kW
• Weight: approx. 205–300 kg (depending on configuration, without options)
• Dispenser variants: single dispenser; optional automatic double dispenser
• Mobility: 4 lockable swivel castors
