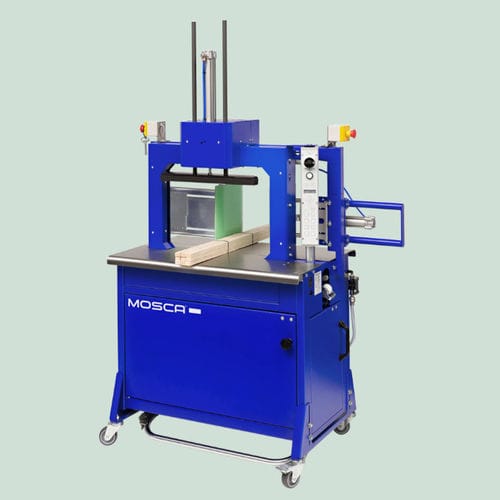

Automatic strapping machine SoniXs MP-6 T wood

coilstrapfor wood

The SoniXs MP-6 T Wood is designed for strapping small, narrow wooden products. It is accessible from both sides and is equipped with a hold-down device and side aligners. The machine can be operated by hand or foot switch or integrated into a fully automatic line. Standard features SoniXs Pneumatic hold-down device Pneumatic side pusher with counter stop plate Signal exchange via 16-pin contact socket Optimum accessibility and tool-free disassembly of belt path components Direct current drive technology with low-wear direct drives and integrated electronics Infinitely variable rotating control panel (0 - 180°) for versatile machine operation Belt tension adjustable via control panel Programmable band voltage value Switching from maximum to material-friendly eco speed in the control unit Strapping counter integrated into the control unit Quick-change reel system Coil change possible from the front and from the side Automatic belt threading system strap end query with strap remainder ejection Automatic belt ring ejector Extremely low energy consumption Stand-by function (reduces wear and energy consumption) 2 fixed castors non lockable, 2 swivel castors lockable CE mark incl. declaration of conformity Options Additional short-stroke cylinder (25 mm) instead of stop plate Bead in the infeed and outfeed table Table extension Emergency stop interface Automatic belt tension adjustment via package height query Lowering suspension H = 730 - 835 mm to the front and rear, or outwards Preliminary end-of-band query with signal to the control unit Manual strapping release via additional fixed or flexible foot switch Signal light (LED) 4 swivel castors, 2 of which are braked
