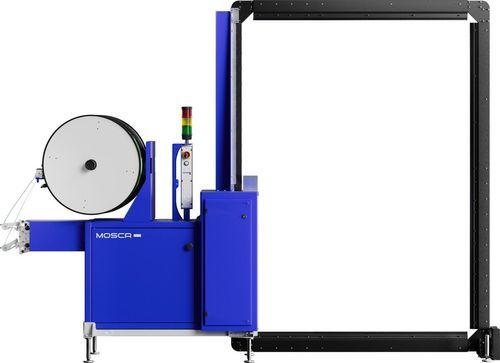

Automatic strapping machine SoniXs MS-6 KR-OV

machineframefor PP-PET straps

Overview
The SoniXs MS-6 KR-OV automatic strapping machine is designed to secure bulky products such as white goods and furniture for transport. The lateral position of the sealing unit is suitable for low conveyor heights and protects the unit from dust and dirt. The horizontal unit traverse allows products not to rest directly against the unit. Custom frame sizes are available on request.

Key features

• Automatic strapping machine with lateral sealing unit and flap frame
• SoniXs ultrasonic sealing system (Standard-6)
• Compatible with PP and PET strapping
• Horizontally movable sealing unit (up to 340 mm)

Standard features

• Flap frame with magnetic locking
• Horizontally movable unit up to 340 mm
• Frame sizes graduated in 200 mm increments
• SoniXs ultrasonic sealing system — Standard-6
• Integration into processing lines possible
• Optimum accessibility and tool-free disassembly of strap path components
• Variable dispenser mounting
• Strap tension adjustable via control panel
• Manual strapping release via push button in control panel
• Infinitely variable rotating control panel (0 - 180°)
• Extremely low energy consumption; CE marking with declaration of conformity

Options

• Manual release via flexible foot switch
• Core dispenser Ø 406 mm (option for PET)
• Signal light (LED)
• Preliminary end-of-band detection with signal to the control unit
• Signal exchange via 16-pin contact socket
• Fully automatic reel change with double dispenser
• Customer-specific frame heights and options

Technical data (selected)
Performance: Up to 15 strappings/min (with frame size 850 x 2000 mm). Frame width: 650 - 2,850 mm (200 mm steps). Frame height: 1,000 - 2,800 mm (200 mm steps). Maximum frame circumference (combinable): up to 8,350 mm. Conveyor height (standard): 400 - 575 mm; (option raised): 500 - 875 mm. Strapping material: PP (example width 12 mm; thickness 0.55–0.80 mm); PET compatible (optional core Ø 406 mm). Strap coil dispenser core diameter: 200 mm (406 mm optional for PET). Strap coil core length: 190 mm (150 mm optional for PET). Electrics: 100 - 240 V, 50/60 Hz, 1L+N+PE (other voltages on request). Power consumption: approx. 0.3 kW (depending on configuration). Weight: approx. 300–500 kg (depending on configuration).

Applications / Use

• Securing bulky products (white goods, furniture) for transport
• Integration into conveyor lines and end-of-line packaging solutions
• Environments requiring low conveyor heights and protected sealing unit position

Technical specifications

• Model: SoniXs MS-6 KR-OV
• Sealing technology: SoniXs ultrasonic sealing (Standard-6)
• Unit position: lateral, flap frame system
• Unit traverse: horizontal (products need not lie directly against unit)
• Frame width range: 650–2,850 mm (200 mm steps)
• Frame height range: 1,000–2,800 mm (200 mm steps)
• Maximum frame circumference: up to 8,350 mm
• Performance: up to 15 straps/min (example 850 x 2000 mm)
• Strap types: PP and PET (PP example: 12 mm width, 0.55–0.80 mm thickness)
• Dispenser core: 200 mm standard; 406 mm optional for PET
• Control & operation: digital display, manual release, optional foot switch, rotating control panel 0–180°
• Power: 100–240 V, 50/60 Hz (1L+N+PE); typical consumption ~0.3 kW
• Weight: approx. 300–500 kg depending on specification
• Compliance: CE marking and Declaration of Conformity
