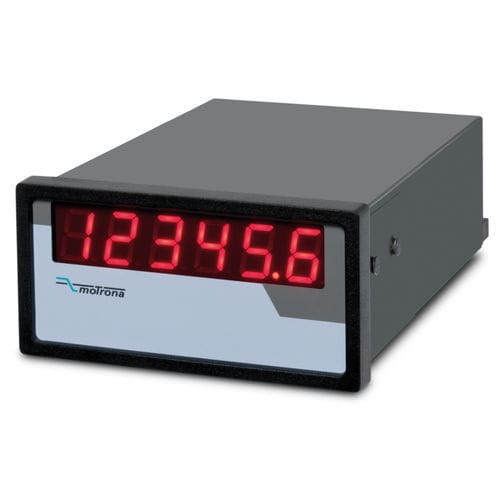

CANbus indicator CA340

processwith LED display6-digit

CA340: Fieldbus indicator for CAN bus (SDO and PDO) The CA340 display unit is a cost-effective and easy-to-use solution for visualizing parameters or process data in systems that are connected via a CAN bus (e.g. for displaying and specifying speed values). This digital indicator for “on-site” use is suitable for all process values that are available via the CAN bus and can display up to 6 digits. The device is compatible with both PDO and SDO objects. • Power supply 10 ... 30 VDC • Standardized switch panel housing • 6 decade LED display with 15 mm digit height • Display range -199999 ... 999999 • DIL switch for setting the transmission parameters • Dimensions H x W x D = 96 x 48 x 140 mm
