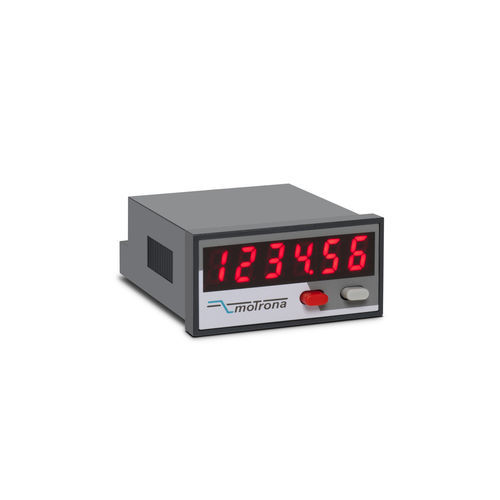

speed indicator / frequency / 6-digit / with LED display
DX020 Mini

{{requestButtons}}

Characteristics

  • Measured value:

    speed, frequency

  • Display:

    6-digit, with LED display

  • Type:

    panel-mount

  • Other characteristics:

    programmable, compact

Description

Miniature Indicator and Tachometer with Incremental Input (A)

• Digital display of speeds, frequencies, speeds, beats, etc.

• Pulse input for a HTL NPN / PNP signal

• 60 kHz of counting frequency

• Power supply 10 to 30 VDC

• Miniature housing and additional bezels for clip or screw mounting

• Bright LED display 6 digits / 8 mm (0.315”)

• Indicates speeds, frequencies and cycle times in a range of 0 to 999 999 units

• Selectable filter for mechanical inputs

• Display value of the speed indicator freely scalable

• Adjustable multiplier and divider

• Easy to set up by menu support

• Protection class IP65 on front
