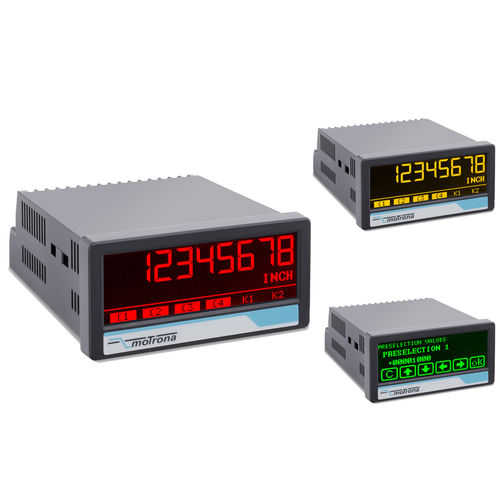

Position indicator DX355 touchMATRIX® TTL

speed7-segmentLCD

Digital indicator for incremental encoders or sensor signals DX355: Functions equal to DX350 but with 2 incremental HTL / RS422 control inputs. Input frequency up to 1 MHz and a switchable encoder supply of 5 / 24 VDC DX350: HTL inputs (A, B), 3 control inputs • Multi functional device for Pulse counter, HTL frequency counter, tachometer, counter, cycle time, position indicator, stopwatch • 2 Incremental inputs with format A, /A, B, /B, differential, single-ended HTL / RS422 • Input frequency up to 1 MHz • Power supply 18 ... 30 VDC • 24 V auxiliary output for encoder supply • 3.78 x 1.89 inch norm panel housing and IP65 protection • Bright and high-contrast display with event-dependent color variations • Emulation of a 7-segment display inclusively icons and units • Intuitive and easy parameterization by plain text and touchscreen • Operating modes such as scaling, average filter, start up suppression • Linearization with 24 control points Options can be combined: • AC: Power supply 115 ... 230 VAC • AO: 16 bit analog output, 4 control outputs, serial RS232 interface • AR: 16 bit analog output, 4 control outputs,serial RS485 interface • CO: 4 control outputs, serial RS232 interface • CR: 4 control outputs, serial RS485 interface • RL: 2 relay outputs
