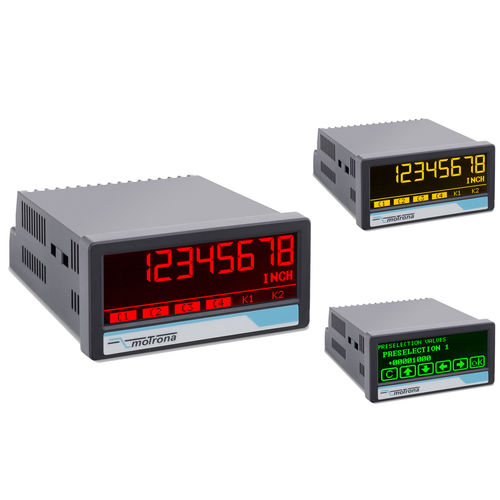

IO-link indicator AX350/IO touchMATRIX®

process7-segmentLCD

IO-Link indicator for displaying 2 process data • 2 universal 16 bit analog inputs for ±10 V or 0/4 … 20 mA • 3 control inputs for HTL/PNP signals • Power supply 18-30 VDC • 24V auxiliary output for encoder supply • High accuracy reference output 10V for potentiometers > 1 kOhm • 3.78x1.89 inch norm panel housing and IP65 protection • Bright Display with event-dependent color variations • Emulation of a 7-segment display with icons and units • Easy parameterization by plain text and touchscreen • Numerous features, e.g. tara, filters, averaging • Linearization with 24 control points Option IO-Link Device V1.1 Data transfer via COM3 (230,4 kBaud) Cycle times < 3 msec Process data IN 32 Byte (6 x process values from AX350): - Analog value1 (scaled / linearized) and unit - Analog value2 (scaled / linearized) and unit - Analog value1 (scaled / linearized) with totalisation and unit - Analog value2 (scaled / linearized) with totalisation and unit - Shortcut analog value1 with analog value2 (both scaled / linearized) and unit - Shortcut totalisator analog value1 with totalisator analog value2 (both scaled / linearized) and unit Process data Out 8 Byte (2 x IO-Link process values to AX350): - IOL process value Out1 with scaling, adjustable decimal point and programmable units - IOL process values Out2 with scaling, adjustable decimal point and programmable units Combinable with further options: AC: Power supply 115-230 VAC AO: 16 bit analog output, 4 control outputs, serial RS232 interface AR: 16 bit analog output, 4 control outputs, serial RS485 interface CO: 4 control outputs, serial RS232 interface CR: 4 control outputs, serial RS485 interface RL: 2 relay outputs
