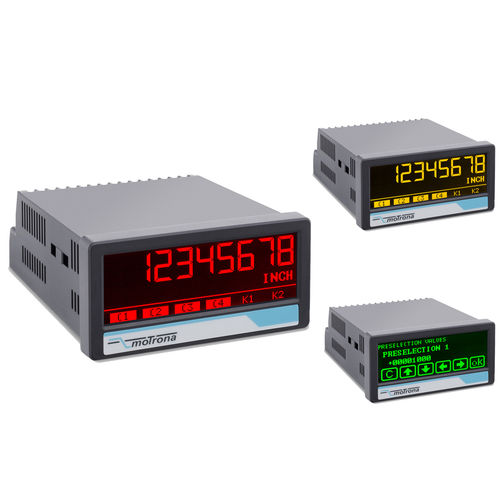

Position indicator DP350 touchMATRIX® transsonar

LCD displayRS-485RS-232

Position display for transsonar measurement by absolute transducers and magnetostrictive sensors DP350: start-stop interface, 3 control inputs DP355: Basic unit like DP350, with open-circuit monitoring • Start-stop interface for absolute transducers and magnetostrictive sensors • Frequency Init pulses adjustable from 62.5 Hz to 5000 Hz • 3 control inputs for HTL / PNP signals • Power supply 18 ... 30 VDC • Auxiliary voltage output 24 VDC or 5 VDC for encoder supply • Standard housing with 96 x 48 mm and IP65 protection • Bright and high-contrast graphic display with event-dependent color variants • Emulation of a 7-segment display with symbols and units • Intuitive and easy parameterization through plain text and touch screen • Numerous functions such as scaling, filter, zero offset, counting direction etc. • Linearization with 24 interpolation points Options (combinable): • AC: device power at 115-230 VAC • AO: 16-bit analog output, 4 control outputs, RS232 interface • AR: 16-bit analog output, 4 control outputs, RS485 interface • CO: 4 control outputs, RS232 interface • CR: 4 control outputs, RS485 interface • RL: 2 relay outputs
