position indicator / speed / 7-segment / LCD
DX350 touchMATRIX® HTL

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
position indicator / speed / 7-segment / LCD position indicator / speed / 7-segment / LCD - DX350 touchMATRIX® HTL
{{requestButtons}}

Characteristics

  • Measured value:

    position, speed

  • Display:

    7-segment, LCD, with touch screen

  • Type:

    panel-mount

  • Other characteristics:

    programmable, 4-20 mA, RS-232, RS-485, analog output, HTL, transistor output, with relay output

Description

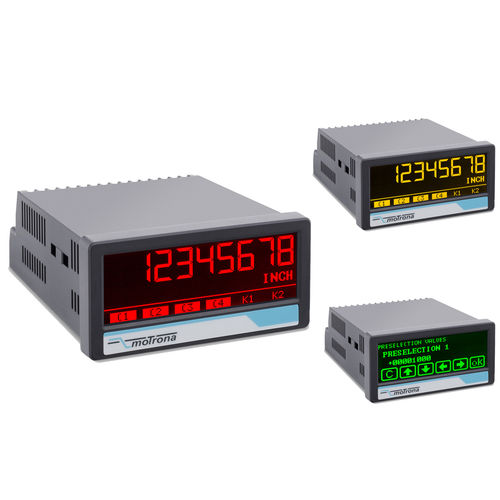

Digital indicator for incremental encoders or sensor signals

DX350: HTL inputs (A, B), 3 control inputs
DX355: Functions equal to DX350 but with 2 incremental HTL / RS422 control inputs. Input frequency up to 1 MHz and a switchable encoder supply of 5 / 24 VDC

• Multi functional device for Pulse counter, HTL frequency counter, tachometer, counter, cycle time, position indicator, stopwatch

• Pulse input with format A, B, 90° [HTL], single channel as an option
• HTL inputs for encoder and sensors with NPN / PNP or NAMUR switching characteristics
• Input frequency up to 250 kHz
• 3 control inputs for HTL / PNP signals
• Power supply 18 ... 30 VDC
• 24 V auxiliary output for encoder supply
• 3.78 x 1.89 inch norm panel housing and IP65 protection
• Bright and high-contrast display with event-dependent color variations
• Emulation of a 7-segment display inclusively icons and units
• Intuitive and easy parameterization by plain text and touchscreen
• Operating modes such as scaling, average filter, start up suppression
• Linearization with 24 control points

Options can be combined:

• AC: Power supply 115 ... 230 VAC
• AO: 16 bit analog output, 4 control outputs, serial RS232 interface
• AR: 16 bit analog output, 4 control outputs,serial RS485 interface
• CO: 4 control outputs, serial RS232 interface
• CR: 4 control outputs, serial RS485 interface
• RL: 2 relay outputs
