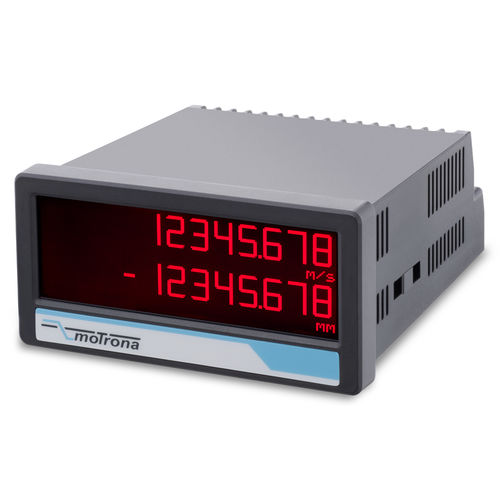

Dual-channel indicator MX350 touchMATRIX®

positionspeedfrequency

The MX350 is the innovative combination of counter and frequency display. It has the ability to simultaneously display two sizes from different measurement methods. Thus, the device is usable for simultaneous acquisition and display of two factors, such as speed / frequency and position / pieces. In addition, the device can handle an input frequency up to 250 kHz. The MX350 also offers other useful functions such as linking both channels (A+B, A-B, …), linearization, scaling, filtering and start-up suppression. Digital tachometer with double display, with the possibility of simultaneous measurement and display of two sizes, e.g. speed / frequency and position / pieces. • Pulse input with format A, B, 90° [HTL], single channel as an option • HTL inputs for encoder and sensors with NPN / PNP or NAMUR switching characteristics • Input frequency up to 250 kHz • 3 control inputs for HTL / PNP signals • Power supply 18 ... 30 VDC • 24 V auxiliary output for encoder supply • 3.78 x 1.89 inch norm panel housing and IP65 protection • Bright and high-contrast display with event-dependent colour variations • Emulation of a 7-segment display inclusively icons and units • Intuitive and easy parameterization by plain text and touchscreen • Multi-function device for use as speedometer / tachometer, pulse counter / position indicator, number counter and total counter • Operating modes such as scaling, average filter, start up suppression • Linearization with 24 control points
