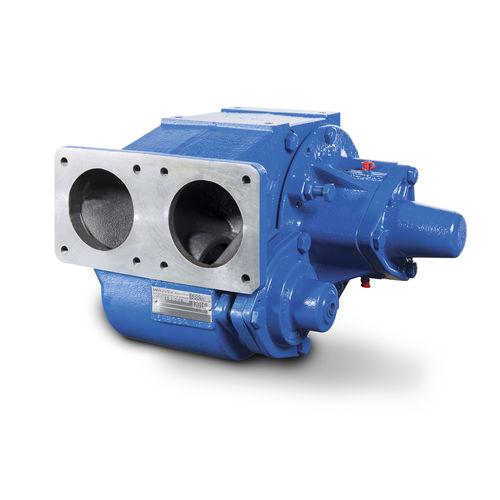

Oil pump CC8 series
fuelfor crude oildiesel

oil pump
oil pump
oil pump
oil pump
oil pump
oil pump
oil pump
oil pump
oil pump
oil pump
Add to favorites
Compare this product

Characteristics

Media
oil, fuel, for crude oil
Operation
diesel
Technology
rotary vane
Domain
industrial, for automotive applications
Other characteristics
ATEX, compact, spring, small, heating, bronze, steel, stainless steel, cast iron
Applications
loading, unloading, transfer
Fluid specification
for hot oil
Flow

Max.: 80 m³/h (2,825.1733 ft³/h)

Min.: 0 m³/h (0 ft³/h)

Pressure

8 bar (116.03 psi)

Description

CC8 Series Rotary Vane Pumps Mouvex® CC8 Series Rotary Vane Pumps are vehicle-mounted solutions for loading and unloading petroleum products for trucks and transports. These pumps are ATEX certified and compact, and feature an integrated by-pass designed to protect against excessive pressures and overheating. Performance and Specifications Performance. Increased safety Integrated bypass to avoid excess pressure Unused shaft end is protected by a casing Compatible with diesel, heating oil, petrol, biodiesel paraffin, kerosene, oil heavy fuel and bitumen Compact size to fit in small, narrow spaces Double-ended shaft facilitates mounting and adapts to the direction of rotation Broad flow range Quiet operation Constant flow rate over time Line-stripping capabilities Flow rates up to 80m3/h (8 bar) Options Heating jackets Relief valves (spring; air operated, air operated + spring) Hydraulic adapter
