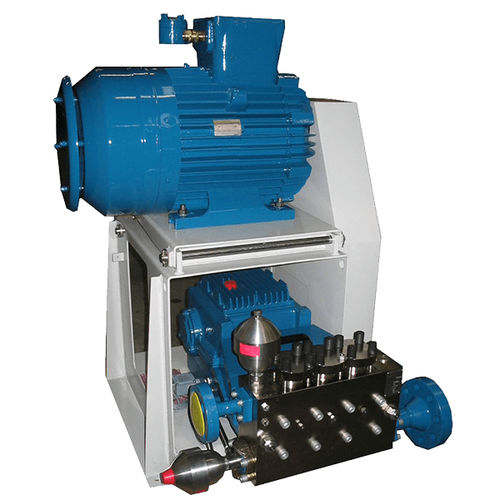

Oil pump NF50
for LPGfor gasLNG

oil pump
oil pump
oil pump
Add to favorites
Compare this product


Characteristics

Media
oil, for LPG, for gas, LNG
Operation
electric
Priming
self-priming
Technology
reciprocating
Domain
industrial, for the petrochemical industry
Applications
process, discharge, high-pressure
Other characteristics
suction, triplex
Flow

Min.: 0 m³/h (0 ft³/h)

Max.: 10 m³/h (353.1467 ft³/h)

Pressure

Min.: 0 bar (0 psi)

Max.: 900 bar (13,053.396 psi)

Description

Performance and Specifications Mouvex reciprocating triplex plunger pumps cover most applications in the oil and gas industry, both offshore and onshore, and in the petrochemical field, especially when high pressures are required. Other typical applications include those in the LPG and LNG field. Mouvex NF50 pumps are triplex plunger pumps designed according to API 674 norms. Performance Stroke: 60 mm Maximum Flowrate: 10 m3/h Maximum power at shaft end: 36.7 Kw Maximum Differential Pressure: 900 bar Approximate weight: 290 Kg (639 lbs) Max. viscosity: 100 cSt Max. solid size: 100 µm API speed rating: 432 rpm Suction and discharge connections are available on both sides Options Self-supporting Gear reducer, couplings or belts Instrumentations: pressure, temperature switch, monitoring devices Drivers: electric motor or fuel motor Accessories: pulsation dampeners, suction stabilizers, valves, process and service filters

Catalogs

No catalogs are available for this product.

See all of MOUVEX‘s catalogs
