Oil pump TP420
for LPGfor gasLNG

oil pump
oil pump
oil pump
Add to favorites
Compare this product


Characteristics

Fluid
oil, for LPG, for gas, LNG
Operation
electric
Priming
self-priming
Technology
reciprocating
Domain
industrial
Applications
process, discharge
Other characteristics
suction, triplex
Flow

Min.: 0 m³/h (0 ft³/h)

Max.: 108 m³/h (3,813.98401 ft³/h)

Pressure

Min.: 0 bar (0 psi)

Max.: 866 bar (12,560.268 psi)

Description

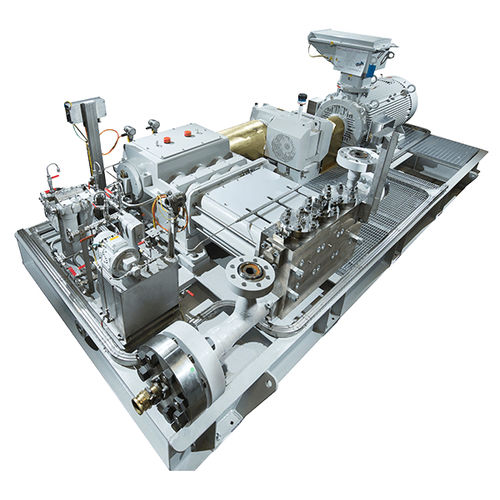

Performance and Specifications Mouvex reciprocating triplex plunger pumps cover most applications in the oil and gas industry, both offshore and onshore, and in the petrochemical field, especially when high pressures are required. Other typical applications include those in the LPG and LNG field. Mouvex TP420 pumps are triplex plunger pumps designed according to API 674 norms. Performance Stroke: 170 mm Maximum Flowrate: 108 m3/h Maximum power at shaft end: 310 kW Maximum Differential Pressure: 866 bar Approximate weight: 3,300 kg (7,275 lbs) Max. viscosity: 100 cSt Max. solid size: 100 µm API speed rating: 250 rpm Suction and discharge connections are available on both sides Options Self-supporting Gear reducer, couplings, belts Instrumentation: pressure, temperature switch, monitoring devices Drivers: electric motor or fuel motor Accessories: pulsation dampeners, suction stabilizers, valves, process and service filters
