Cartridge valve HY-SP08-21
hydraulicblockingfor oil

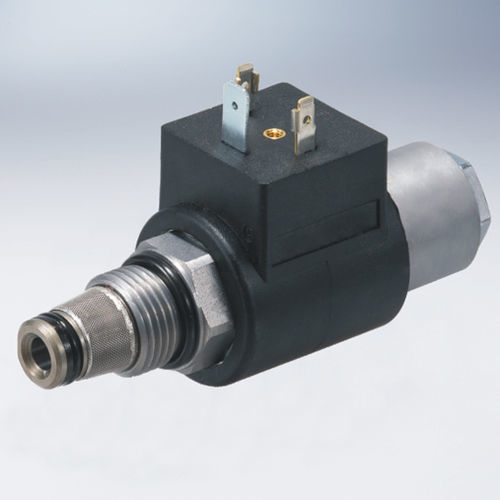

Cartridge valve - HY-SP08-21 - Ningbo Hoyea Machinery Manufacture - hydraulic / blocking / for oil
Cartridge valve - HY-SP08-21 - Ningbo Hoyea Machinery Manufacture - hydraulic / blocking / for oil
Add to favorites
Compare this product

Characteristics

Type
cartridge
Operation
hydraulic
Function
blocking
Media
for oil
Body
screw-in
Number of channels
2-way
Other characteristics
normally open
Pressure

207 bar
(3,002.3 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 50 °C
(122 °F)

Flow rate

Min.: 0 l/min
(0 us gal/min)

Max.: 22.7 l/min
(6 us gal/min)

Description

A solenoid-operated, 2-way, normally open, poppet-type, proportional, screw-in hydraulic cartridge valve for low-leakage load-loading applications, and for starting or stopping a load or a pump system. Operation: When de-energized, the HY-SP-08-21 allows flow from ② to ①. When the valve is partially energized, the valve begins to throttle the flow from ② to ①. When fully energized, the poppet closes on the seat, blocking flow from ② to ①. Flow from ① to ② will occur when hydraulic pressure exceeds the solenoid force.
