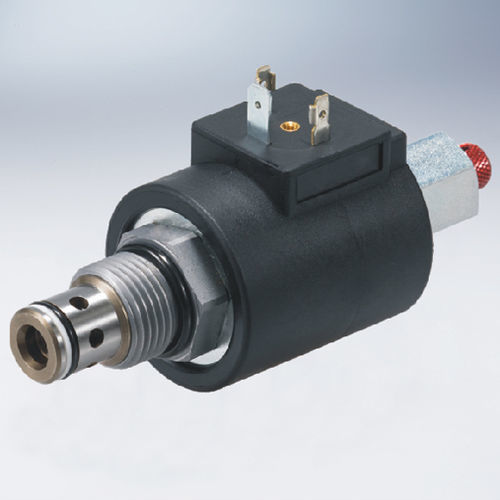

Cartridge valve HY-SP10-20hydraulicblockingfor oil
Add to favorites
Compare this product
Characteristics
- Type
- cartridge
- Operation
- hydraulic
- Function
- blocking
- Media
- for oil
- Body
- screw-in
- Applications
- industrial
- Number of channels
- 2-way
- Other characteristics
- normally closed, proportional
- Pressure
250 bar
(3,625.9 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)- Flow rate
68 l/min
(17.96 us gal/min)
Description
A solenoid-operated, 2-way, normally closed, poppet-type, proportional, screw-in hydraulic cartridge valve for blocking or load-loading applications.
Operation:
When de-energized, the HY-SP-10-20 acts as a check valve, allows flow from ① to ②, while blocking flow from ② to ①. when energized, the cartridge’s poppet lifts to open the ② to ① flow path. Flow is proportional to current applied to the coil. Flow varies with manual override.
