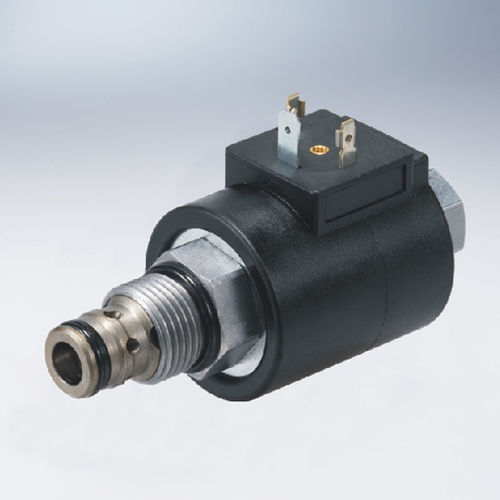

Cartridge valve HY-TS10-26

electrichydraulicpilot-operated

A screw-in, cartridge-style, pilot-operated, spool-type hydraulic relief valve, which can be infinitely adjusted across a prescribed range using a variable electric input. The regulated pressure is proportional to the input electric current. This valve is intended for use as a pressure limiting device in demanding applications. Operation: The TS10-26 blocks flow from ① to ② until sufficient pressure is present at ① to open the pilot section by offsetting the electrically induced solenoid force. With no current applied to the solenoid, the valve will relieve at approximately 6.9 bar (100 psi). The optional manual override allows the valve to be set when the electric supply is lost. The manual setting is added to the electric setting. To prevent the system from being over pressurized, the manual override should always be disengaged prior to applying power to the coil.
