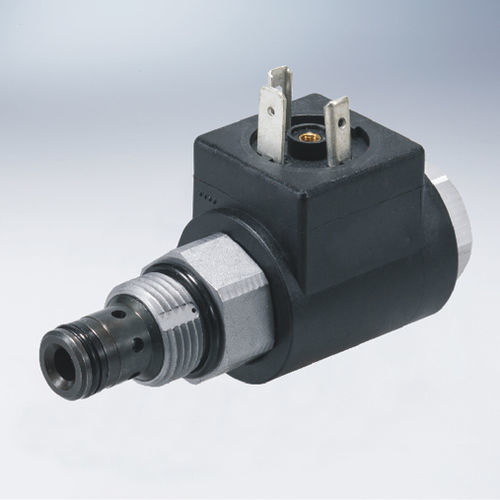

Cartridge valve HY-TS08-27

electrichydraulicpilot-operated

A screw-in, cartridge-style, pilot-operated, hydraulic pressure relief valve, which can be infinitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. This valve is intended for use as a pressure limiting device in demanding applications. Operation: The TS08-27 blocks flow from ① to ② until sufficient pressure is present at ① to open the valve by overcoming the preset induced spring force. With no current applied, the valve will relieve at ±50 psi of the spring maximum. Applying current to the coil reduces the induced spring force thereby reducing the valve setting. The regulated pressure is inversely proportional to the input electrical current. Note: this valve is ideal for hydraulic fan drive applications. Please contact the manufactory for more information about electronic controller for fan drive applications.
