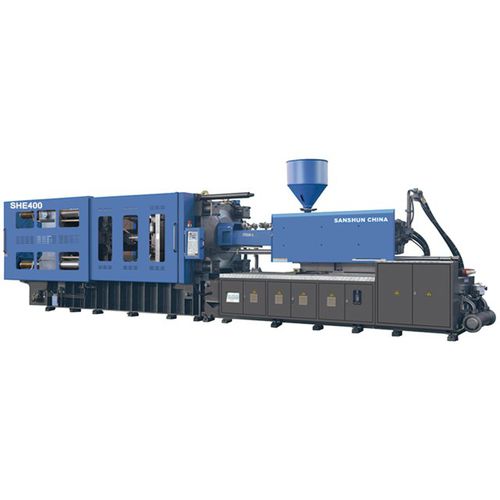

Horizontal injection molding machine SHE400
hydraulictoggle

horizontal injection molding machine
horizontal injection molding machine
horizontal injection molding machine
horizontal injection molding machine
Add to favorites
Compare this product


Characteristics

Closure
horizontal
Operation
hydraulic
Other characteristics
toggle
Clamping force

4,000 kN

Description

Sanshun Fix Pump equipped Plastic Injection Molding Machines A fixed-displacement pump has a set flow rate — every stroke of the motor moves the same amount of fluid. The simplest type of fixed-displacement pump is the gear pump, in which the hydraulic fluid is pushed by rotating gears. In some models, the gears are sequential; in the quieter and more efficient version, the gears are interlocking. Another common variation is the screw pump, which uses the classic Archimedes screw, which looks much like a drill bit, to move the fluid. They have the advantage of providing a high rate of flow at relatively low pressures. Fixed pump system provides stable output, quick response, powerful strength. The hydraulic oil flow design applied modular block technology for rapid oil transfer and dynamic system response Advantages Simple, Relatively inexpensive, Easier to maintain, environmental, set flow rate CLAMPING UNIT -   -   Toggle stroke - mm - 700 Mould Thickness - mm - 280-710 Space between tie-bars - mm - 720X720 Ejector stroke - mm - 160 Ejector tonnage - KN - 85 Ejector number - Piece - 13 Hole Diameter - mm - 160 OTHERS -   -   Heat power - KW - 22.7 Max. pump pressure - MPa - 16 Pump motor power(servo) - KW - 48 Pump motor power (fixed pump) - KW - 37 Valve Size - mm - 25 Machine dimension - m - 7.3X2.0X2.2 Machine weight - t - 13.8 Oil tank capacity - L - 450
