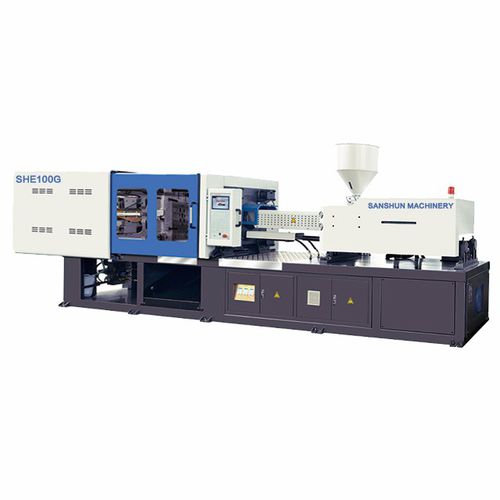

Horizontal injection molding machine SHE100G
servo-hydraulictoggle

horizontal injection molding machine
horizontal injection molding machine
horizontal injection molding machine
horizontal injection molding machine
horizontal injection molding machine
Add to favorites
Compare this product


Characteristics

Closure
horizontal
Operation
servo-hydraulic
Other characteristics
toggle
Clamping force

1,000 kN

Description

SANSHUN SHE-G series energy saving injection molding machine will be your best choice as Servo motor with high efficiency and servo motor system can save energy by 40%-60%. A servo-driven hydraulic machine is a full-hydraulic IMM with a servo motor to drive the hydraulic pump. Servo motors are well known for delivering high accuracy and repeatability — critical factors in quality assurance. Servo-driven pump machines usually have a noise level that is far lower than a standard hydraulic machine. Modern Servo-driven pump machines should have a noise level around 68 dbA. Advantages Energy saving, environmental, low noise, quick response, high-efficiency, Shorter Cycle Time, Improve Production efficiency CLAMPING UNIT -   -   Toggle stroke - mm - 320 Mould Thickness - mm - 150-400 Space between tie-bars - mm - 385X350 Ejector stroke - mm - 125 Ejector tonnage - KN - 50 Ejector number - Piece - 5 Hole Diameter - mm - 100 OTHERS -   -   Heat power - KW - 8.2 Max. pump pressure - MPa - 16 Pump motor power (servo) - KW - 13 Pump motor power (fixed pump) - KW - 11 Valve Size - mm - 10 Machine dimension - m - 4.3X1.3X1.65 Machine weight - t - 3.4 Oil tank capacity - L - 160
