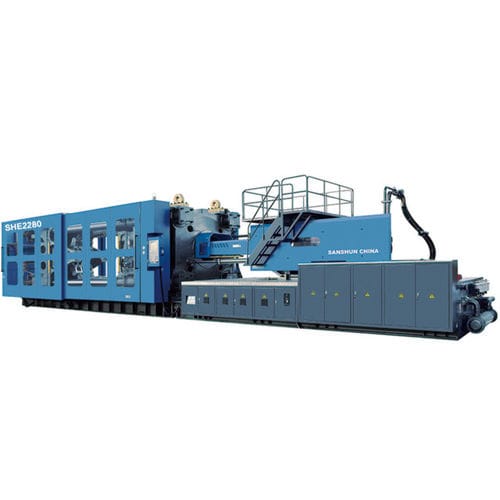

Horizontal injection molding machine SHE2280
hydraulictoggle

horizontal injection molding machine
horizontal injection molding machine
horizontal injection molding machine
horizontal injection molding machine
horizontal injection molding machine
Add to favorites
Compare this product


Characteristics

Closure
horizontal
Operation
hydraulic
Other characteristics
toggle
Clamping force

22,800 kN

Description

Sanshun Fix Pump equipped Plastic Injection Molding Machines A fixed-displacement pump has a set flow rate — every stroke of the motor moves the same amount of fluid. The simplest type of fixed-displacement pump is the gear pump, in which the hydraulic fluid is pushed by rotating gears. In some models, the gears are sequential; in the quieter and more efficient version, the gears are interlocking. Another common variation is the screw pump, which uses the classic Archimedes screw, which looks much like a drill bit, to move the fluid. They have the advantage of providing a high rate of flow at relatively low pressures. Fixed pump system provides stable output, quick response, powerful strength. The hydraulic oil flow design applied modular block technology for rapid oil transfer and dynamic system response Advantages Simple, Relatively inexpensive, Easier to maintain, environmental, set flow rate CLAMPING UNIT -   -   Toggle stroke - mm - 1850 Mould Thickness - mm - 750-1750 Space between tie-bars - mm - 1800X1700 Ejector stroke - mm - 450 Ejector tonnage - KN - 430 Ejector number - Piece - 29 Hole Diameter - mm - 315 OTHERS -   -   Heat power - KW - 145 Max. pump pressure - MPa - 16 Pump motor power - KW - 40+40+40+48+48 Valve Size - mm - Cartridge Valve Machine dimension - m - 17.8X4.0X3.5 Machine weight - t - 140 Oil tank capacity - L - 3000
