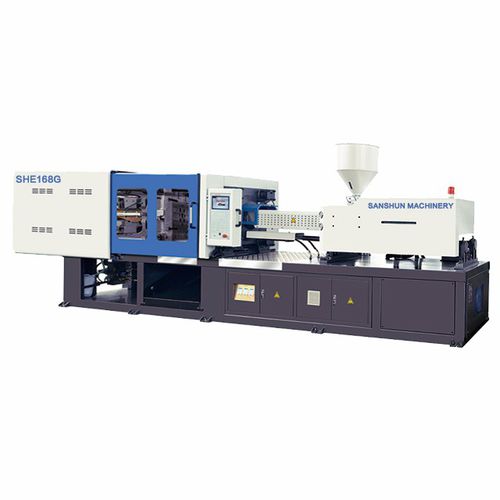

SANSHUN SHE-G series energy saving injection molding machine will be your best choice as Servo motor with high efficiency and servo motor system can save energy by 40%-60%. A servo-driven hydraulic machine is a full-hydraulic IMM with a servo motor to drive the hydraulic pump. Servo motors are well known for delivering high accuracy and repeatability — critical factors in quality assurance. Servo-driven pump machines usually have a noise level that is far lower than a standard hydraulic machine. Modern Servo-driven pump machines should have a noise level around 68 dbA.
Advantages
Energy saving, environmental, low noise, quick response, high-efficiency, Shorter Cycle Time, Improve Production efficiency
CLAMPING UNIT - -
Toggle stroke - mm - 440
Mould Thickness - mm - 180-470
Space between tie-bars - mm - 480X460
Ejector stroke - mm - 155
Ejector tonnage - KN - 70
Ejector number - Piece - 5
Hole Diameter - mm - 125
OTHERS - -
Heat power - KW - 11.7
Max. pump pressure - MPa - 16
Pump motor power (servo) - KW - 26
Pump motor power (fixed pump) - KW - 15
Valve Size - mm - 16
Machine dimension - m - 5.3X1.4X1.75
Machine weight - t - 5.5
Oil tank capacity - L - 250
