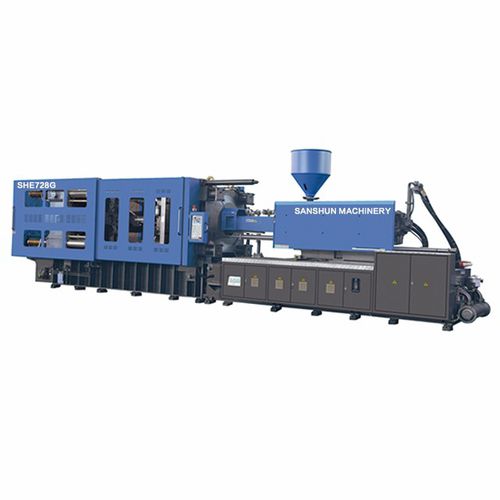

Horizontal injection molding machine SHE728G

hydraulictoggle

SANSHUN SHE-G series energy saving injection molding machine will be your best choice as Servo motor with high efficiency and servo motor system can save energy by 40%-60%. A servo-driven hydraulic machine is a full-hydraulic IMM with a servo motor to drive the hydraulic pump. Servo motors are well known for delivering high accuracy and repeatability — critical factors in quality assurance. Servo-driven pump machines usually have a noise level that is far lower than a standard hydraulic machine. Modern Servo-driven pump machines should have a noise level around 68 dbA. Advantages Energy saving, environmental, low noise, quick response, high-efficiency, Shorter Cycle Time, Improve Production efficiency CLAMPING UNIT - 　 - 　 Toggle stroke - mm - 950 Mould Thickness - mm - 400-960 Space between tie-bars - mm - 961X961 Ejector stroke - mm - 260 Ejector tonnage - KN - 180 Ejector number - Piece - 21 Hole Diameter - mm - 250 OTHERS - 　 - 　 Heat power - KW - 51.5 Max. pump pressure - MPa - 16 Pump motor power(servo) - KW - 48+48 Pump motor power (fixed pump) - KW - 30+37 Valve Size - mm - cartridge valve Machine dimension - m - 10.7X2.4X2.65 Machine weight - t - 38 Oil tank capacity - L - 1200
