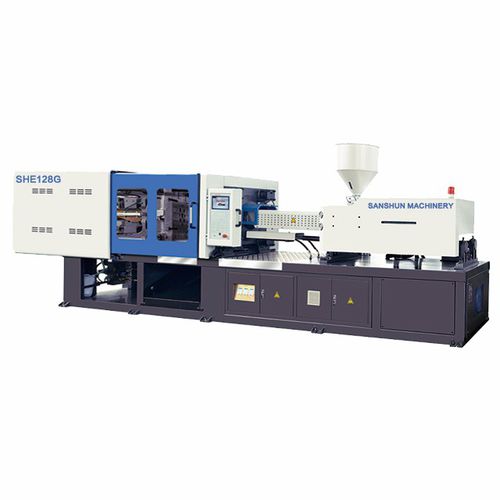

Horizontal injection molding machine SHE128G

hydraulicfor PETtoggle

SANSHUN SHE-G series energy saving injection molding machine will be your best choice as Servo motor with high efficiency and servo motor system can save energy by 40%-60%. A servo-driven hydraulic machine is a full-hydraulic IMM with a servo motor to drive the hydraulic pump. Servo motors are well known for delivering high accuracy and repeatability — critical factors in quality assurance. Servo-driven pump machines usually have a noise level that is far lower than a standard hydraulic machine. Modern Servo-driven pump machines should have a noise level around 68 dbA. Advantages Energy saving, environmental, low noise, quick response, high-efficiency, Shorter Cycle Time, Improve Production efficiency CLAMPING UNIT - 　 - 　 Toggle stroke - mm - 365 Mould Thickness - mm - 150-420 Space between tie-bars - mm - 428X386 Ejector stroke - mm - 140 Ejector tonnage - KN - 50 Ejector number - Piece - 5 Hole Diameter - mm - 100 OTHERS - 　 - 　 Heat power - KW - 9.9 Max. pump pressure - MPa - 16 Pump motor power (servo) - KW - 18 Pump motor power (fixed pump) - KW - 13 Valve Size - mm - 10 Machine dimension - m - 4.8X1.3X1.7 Machine weight - t - 4.2 Oil tank capacity - L - 200
