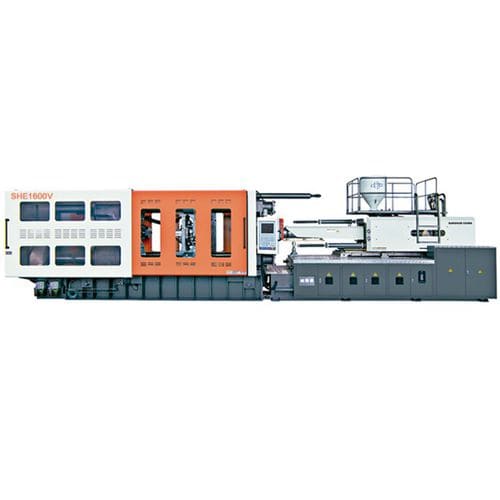

Horizontal injection molding machine SHE1600V

hydraulictoggle

Sanshun Variable Pump equipped Plastic Injection Molding Machines consumes 30–35% less energy compared to a fixed pump. It is mostly used for high speed (packaging components) IMM as the cooling time for the components is negligible. So the motor runs continuously performing operations. Variable pump injection machine, at the same speed, can change the displacement of the hydraulic pump, and the motor load will also change with displacement, so as to save electricity. The main difference between the variable quantity pump and standard pump is output power, output power of the variable pump is changed with the load change, and the output power of the pump is relatively constant, in a small flow of actions, the output power of the variable pump is very low, but the quantitative pump output power constant Advantages variable-displacement pump, constant-speed motor, Energy saving, environmental, Economical, quick response, Improve Production efficiency CLAMPING UNIT - 　 - 　 Toggle stroke - mm - 1500 Mould Thickness - mm - 700-1500 Space between tie-bars - mm - 1480X1400 Ejector stroke - mm - 370 Ejector tonnage - KN - 320 Ejector number - Piece - 29 Hole Diameter - mm - 250 OTHERS - 　 - 　 Heat power - KW - 82.8 Max. pump pressure - MPa - 16 Pump motor power - KW - 40+40+48+48 Valve Size - mm - cartridge valve Machine dimension - m - 15.8X3.6X4.7 Machine weight - t - 95 Oil tank capacity - L - 2550
